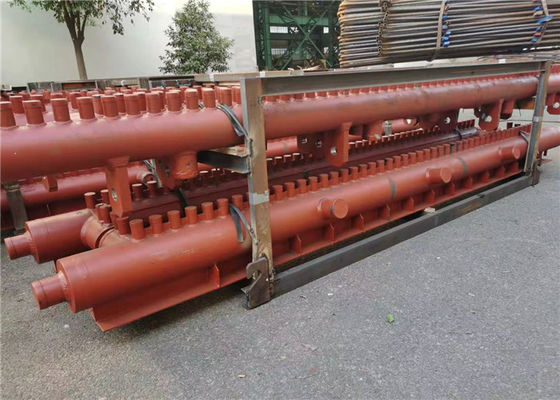

ASME Standard CS / SS Seamless Boiler Header Manifold

ASME Standard CS / SS Seamless Boiler Header Manifold

  • ASME Standard CS / SS Seamless Boiler Header Manifold
  • ASME Standard CS / SS Seamless Boiler Header Manifold
  • ASME Standard CS / SS Seamless Boiler Header Manifold
  • ASME Standard CS / SS Seamless Boiler Header Manifold
ASME Standard CS / SS Seamless Boiler Header Manifold
Product Details:
Place of Origin: Jiangsu , China
Brand Name: HDB
Certification: ISO9001 , SGS , TUV , ASME , EN
Model Number: Boiler Manifold Header
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 500 tons/month
Contact Now
Detailed Product Description
Condition: New Specification: Customized
Application: Power Station Material: Carbon Steel/Stainless Steel/Alloy Steel
OEM: Yes Color: Customized
High Light:

Seamless Boiler Header Manifold

,

CS Boiler Header Manifold

,

ASME Standard Boiler Header Manifold




ASME Standard CS / SS Seamless Boiler Manifold Header For Boiler Spare Parts





Definition of Header


According to its location, there are upper header and lower header or inlet header and outlet header. According to the types of tube bundles collected, they are divided into water wall header, superheater header, economizer header, etc.



Product Description of Header

The main function is to collect the working medium, or redistribute the working medium to other pipelines through the header, that is, to collect, mix and distribute the working medium, so as to ensure the uniform distribution and heating of the working medium. The lower header, also known as anti coking box, is located on both sides of the grate and directly contacts with the burning coal seam. Its function is to cool the coking slag and not bond with the side wall.




Material Carbon steel,Alloy steel,Stainless steel.
Length According to costumes requirements.
Temperature Range 300℃~1500℃
Diameter(OD)

76mm~914mm





Function of Header


The collecting box is the pipe fitting for boiler working medium mixing and ensuring uniform heating of working medium.Industrial boiler furnace wall is usually composed of rows and rows of tubes (water wall) together, but boiler huge volume, complicated structure, cannot guarantee that all the working medium in the pipe of heat absorption capacity is the same, different parts of heat absorption differs a lot, install header can let each pipe working medium inside converge here, the redistribution to the next level in the tube, so that we can reduce the thermal deviation, make the working medium heat, cooling flow, boiler, the boiler thermal efficiency are optimized to improve;In addition, the size, quantity and arrangement of pipes in the upper, middle and lower parts of the boiler are different, and the collecting box is responsible for connecting each section to ensure the smooth flow of working quality.



ASME Standard CS / SS Seamless Boiler Header Manifold 0



Features of Header


1. Strength calculation report with applied materials information.
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler.
4. Hydraulic test report: ensure the standard working pressure and safety.

5.Excellent in welding quality, highly automatic, safe and reliable.





Details of Header


1.Our products are manufactured by way of hot pressing and seamless steel tube retraction on special back neck machine.

2.In this way, obstacles will have thicker walls and cleaner surfaces.The film stress instead of bending stress is formed under the action of internal pressure, which has ideal stress performance.



ASME Standard CS / SS Seamless Boiler Header Manifold 1





Classification of Header




1 Headers form an important part of all types of boilers.
2 Steam from the generating tubes is collected in headers which are therefore always under pressure.
3 This pressure may vary from 300 psi to 2000 psi. Since headers are always under pressure, the utmost care is taken by us while fabricating them.
4 Depending on the generating capacity of the boiler the header sizes fabricated by us vary from 100 mm to 600 mm NB. The stubs of various sizes are very carefully welded to the main body of the header to provide the desired openings from the header.





Materials


1. Carbon steel:20G,SA-106B,SA-106C,etc.

2. Low-alloy thermal resistant steel:15CrMoG,12Cr1MoVG,SA-335P12,SA335-P22,etc.

3. Middle-alloy thermal resistant steel:SA-335P91,etc.

4. Special material(ultra-supercritical):SA-335P122,SA-335P92,etc.





Factory Workshop


ASME Standard CS / SS Seamless Boiler Header Manifold 2
