Welded Boiler Economizer ISO Stainless Steel Finned Tube

Welded Boiler Economizer ISO Stainless Steel Finned Tube

Welded Boiler Economizer ISO Stainless Steel Finned Tube
Welded Boiler Economizer ISO Stainless Steel Finned Tube
Welded Boiler Economizer ISO Stainless Steel Finned Tube
Product Details:
Place of Origin: Jiangsu, Cgina
Brand Name: HD Boiler
Certification: CE, ISO, China Pressure Vessel Pipeline Manufacturing License, TUV, DIN, ASME
Model Number: HDBFT0118
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: USD1,000 to USD5,000 per pc
Packaging Details: Seaworthy packing for exporting with bundle
Delivery Time: Within 45 days after getting the down payment or L/C
Payment Terms: L/C at sight, T/T, Western Union, MoneyGram
Supply Ability: 5,000 pcs per month
Contact Now
Detailed Product Description
Type: H Type, Double H Type,Spiral Type Application: Heater Parts,Refrigeration Parts,Heat Exchanger,Condenser
Fin Material: Aluminum,Copper And Steel Product Name: Spiral Fin Tube,Top Grade Quality Boiler Finned Tube ( Spiral )
Material: Stainless Steel,Carbon Steel, Alloy Steel Heat Transfer Efficiency: High Efficiency
High Light:

economizer stainless steel finned tube

,

boiler stainless steel finned tube

,

ISO stainless steel finned tube

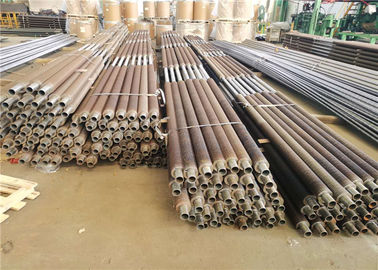

Welded Boiler Fin Tube H Type Finned Tube Spiral Fin Tube for Boiler Economizer





Product Introduction



H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.



H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer, which has high efficiency,little resistance,less wear and light weight.


Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.





Carbon Heat Exchanger Tubes Compact Structure , Steam Boiler Finned Pipe Heat Transfer

Advantages



1.Anti-corrosion
2.Anti-wear
3.Lower contact resistance
4.Higher Stability
5.Anti - ash ability



Classification



PRODUCT TYPE TUBE MATERIAL FIN MATERIAL TUBE SIZE FIN SIZE
Heat Exchanger Finned Tube Extruded Fin Tube All Kind of Material can be applied Aluminum A1100 15.88~50.8 7~11.5FPI
Fin Height Max 16mmH
L-Foot Fin Tube All Kind of Material can be applied Copper C1100, C1220 12.70~50.8 7~11.5FPI
(Wrap On Type) Fin Height Max 16mmH
G-Fin Tube (Embedded Type) Aluminum A1100, A1050, A1060
High Frequency Welded Finned Tube A179 Carbon Steel Tube Carbon Steel Tube 12.70~160 1.5~7FPI
Stainless Steel Tube Stainless Steel Tube 0.8~3.2mm. Thickness
Alloy Steel Material Alloy Steel Material
Integral Copper & Copper Alloy High Finned Tube C12200, C11000, C70600 C12200, C11000, C70600 15.88~22.23 5~9FPI
Max 12mm. H
Oval Finned Tube Carbon Steel Tube Carbon Steel Tube All Size Available 5~15FPI
Stainless Steel Tube Stainless Steel Tube
Alloy Steel Material Alloy Steel Material
Copper & Copper Alloy Tube Copper & Copper Alloy Tube
Monometallic Fin Tube Low Fin Tube Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. -- 9.52~40 12, 16, 19 28 FPI, etc.
Turbo-C Tube
Turbo-E Tube
Corrugated Tube All Kind of Material -- 6.35~40 2~9FPI



Company Information



Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000 ㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.

Welded Boiler Economizer ISO Stainless Steel Finned Tube 1

Design and development



Collect all parameters for product design, make design acording to the Supervisory Regulations on Boiler Safety Technology, other laws, rules, regulations and professional standards, and 100% meet the product standards and customers' requirements.

Welded Boiler Economizer ISO Stainless Steel Finned Tube 2
