114mm OD Power Plant Biomass Boiler Reheater Vertical Structure
  • name
  • name
  • name
  • name

114mm OD Power Plant Biomass Boiler Reheater Vertical Structure

MOQ: 5 Ton
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 30 working days
Payment Method: L/C, T/T
Supply Capacity: 500 tons/month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HDB
Certification
ASME,EN,ISO,SGS
Model Number
Boiler Superheater
Type:
Superheater
Application:
Power Plant/WTE/waste Incineration
Color:
Customer's Requirement
Fuels:
Coal;Oil;Biomass
Price:
Reasonable
Standard:
ASME&GB
Highlight:

Biomass boiler reheater

,

114mm boiler reheater

,

114mm superheater and reheater

Product Description

Description



Superheater

Superheaters are heat exchangers located in the upper part of the furnace that bring the steam to its live operating temperature with heat transfer occurring both by convection and radiation.

Reheater

Power plant furnaces may have a reheater section containing tubes heated by hot flue gases outside the tubes. Exhaust steam from the high-pressure turbine is passed through these heated tubes to collect more energy before driving the intermediate and then low-pressure turbines.





Function



Superheater is to increase the temperature of the steam above its saturation point.

Reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.

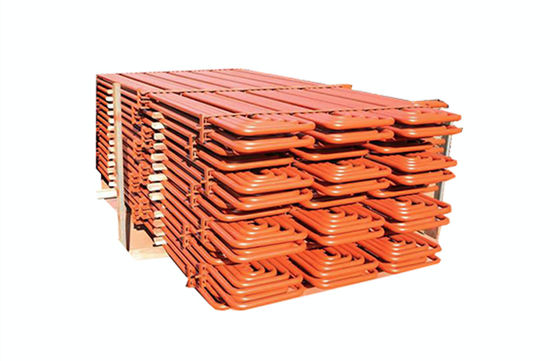

114mm OD Power Plant Biomass Boiler Reheater Vertical Structure 0



114mm OD Power Plant Biomass Boiler Reheater Vertical Structure 1









Specification





Material carbon steel, alloy steel , or durable heat steel
Tube OD 10-114mm
Tube W.T. 0.8mm- 15mm
Structure

vertical or horizontal







Application



Related Industry: Power Generation

The steam superheater aids in the drying of process steam. To maintain optimal performance of the system water vapor must be removed from the steam turbine system.



114mm OD Power Plant Biomass Boiler Reheater Vertical Structure 2
