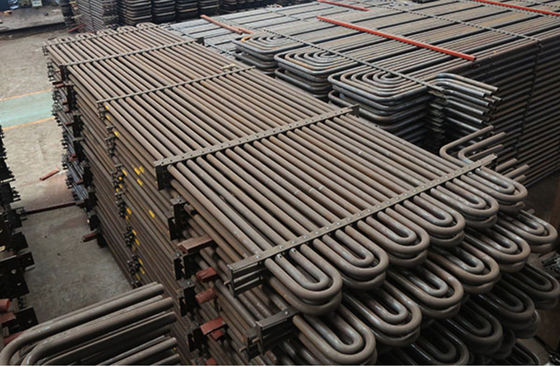

Stainless Steel Thermal Superheater Coil With 10mm OD Tube
Product Details
| Product Name: | Superheater And Reheater | Material: | Carbon Steel,Alloy,Stainless Steel |
|---|---|---|---|
| Color: | As Per Client's Requirements | Certification: | ASME,EN,ISO |
| Dimension: | Depends | Application: | Power Plant |
| Highlight |
Thermal Superheater Coil,Stainless Steel Superheater Coil,Thermal Steel Superheater |
||
Product Description
Description
Superheater
The Steam Superheater is a coil type heat exchanger which is used to produce superheated steam or to convert the wet steam to dry steam, generated by a boiler.It is different from a boiler in a way that, boiler utilizes both sensible heat as well as latent heat to convert water into steam while superheater utilizes only sensible heat to superheat the steam in order to increase its enthalpy.
Power plant furnaces may have a reheater section containing tubes heated by hot flue gases outside the tubes. Exhaust steam from the high-pressure turbine is passed through these heated tubes to collect more energy before driving the intermediate and then low-pressure turbines.
Function
Superheater is to increase the temperature of the steam above its saturation point.
Reheater is basically a superheater that superheats steam exiting the high-pressure stage of a turbine. The reheated steam is then sent to the low-pressure stage of the turbine. By reheating steam between high-pressure and low-pressure turbine it is possible to increase the electrical efficiency of the power plant cycle beyond 40%.The reheat cycle is used in large power boilers since it is feasible economically only in larger power plants.
Specification
| Material | carbon steel, alloy steel , or durable heat steel |
| Tube OD | 10-114mm |
| Tube W.T. | 0.8mm- 15mm |
| Structure | vertical or horizontal |
Application
Related Industry: Power Generation
The steam superheater aids in the drying of process steam. To maintain optimal performance of the system water vapor must be removed from the steam turbine system.
