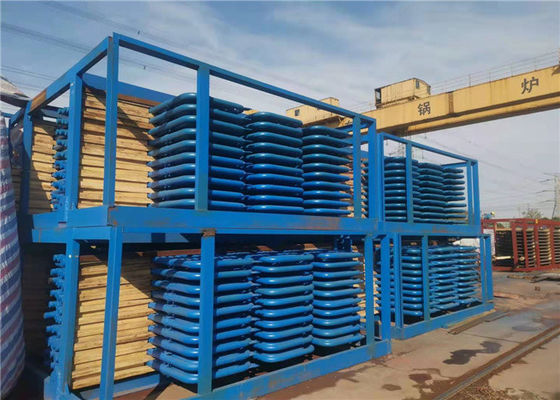

Steel Finned Tube Heat Exchanger Radiant Superheater In Thermal Power Plant

Steel Finned Tube Heat Exchanger Radiant Superheater In Thermal Power Plant

    • Steel Finned Tube Heat Exchanger Radiant Superheater In Thermal Power Plant
    • Steel Finned Tube Heat Exchanger Radiant Superheater In Thermal Power Plant
    • Steel Finned Tube Heat Exchanger Radiant Superheater In Thermal Power Plant
    • Steel Finned Tube Heat Exchanger Radiant Superheater In Thermal Power Plant
  • Steel Finned Tube Heat Exchanger Radiant Superheater In Thermal Power Plant

    Product Details:

    Place of Origin: Zhangjiagang,China
    Brand Name: HD BOILER
    Certification: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Coil

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy packing
    Delivery Time: 50 ~ 100 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1500 Tons / Month
    Contact Now
    Detailed Product Description
    Condition: New Type: Heat Exchanger
    Dimension: Customized Pressure: High / Low Pressure
    Output: Hot Water / Steam Packaging: Iron Frame Package
    Weight: 10~1000 Tons Certification: ISO9001 , SGS , TUV , ASME , EN
    High Light:

    superheater in steam power plant

    ,

    superheater tubes

    ,

    superheater in thermal power plant

    Finned tube heat exchanger power thermal oil heated area super heater and reheater





    Product Description



    Reheaters and superheaters are a set of tubes located in the boiler. Steam from the water walls passes to the superheaters where it is heated above its saturation temperature until the maximum required operating temperature is achieved. The superheated steam then flows through the main steam piping to the high-pressure turbine. Exhaust steam from the high-pressure turbine is guided to the boiler for reheating and from there to the intermediate and low-pressure turbines. High reheating temperatures improve the output and efficiency of a power plant.



    Steel Finned Tube Heat Exchanger Radiant Superheater In Thermal Power Plant 0



    Classification



    Super Heater Types:

    A radiant superheater is placed directly in the combustion chamber.

    A convection superheater is located in the path of the hot gases.

    A separately fired superheater, as its name implies, is totally separated from the boiler.

    Radiant superheaters are located directly within the combustion chamber of the boiler itself. This arrangement allows for the burner from the boiler to heat both the boiler tubing and the superheater tubes, making radiant superheaters highly effective devices. These are most commonly found in steam power plants and also were widely used in steam automobiles.



    Convection superheaters are most commonly found on locomotives. Much like a convection oven, this type of superheater utilizes the hot gases from the burner to reheat the steam. A convection superheater can be extremely efficient, because most of the thermal energy is given only to the boiler tubing. These are also found in power plants, but they were mostly implemented in steam locomotives.





    Product  name

    Boiler superheater

    temperature

    540℃~570℃

    Outer diameter

    30~60mm

    Material

    Carbon steel,stainless steel,alloy steel

    type

    Vertical ;horizontal



    Details



    1. Material composition: It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have 32, 38, 42 or other types of specifications, according to user's needs separately.
    2. Arrangement: vertical or horizontal layout.
    3. Features: beautiful appearance, size, accuracy, first-class bending and welding technology, first-class detection equipment.



    Testing Equipment



    Steel Finned Tube Heat Exchanger Radiant Superheater In Thermal Power Plant 1



    Certificate



    ASME 'S' & 'U'





    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



    1. Fabrication area of 200,000 square meters

    2. 80 Engineers

    3. 200 Coded welders

    4. 50 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization
