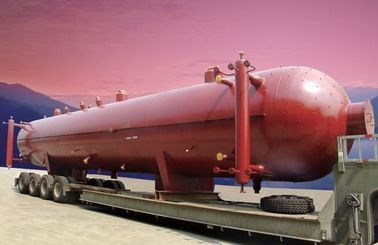

Heat Exchanger Hrsg Steam Drum Of Power Station

Heat Exchanger Hrsg Steam Drum Of Power Station

  • Heat Exchanger Hrsg Steam Drum Of Power Station
  • Heat Exchanger Hrsg Steam Drum Of Power Station
  • Heat Exchanger Hrsg Steam Drum Of Power Station
  • Heat Exchanger Hrsg Steam Drum Of Power Station
Heat Exchanger Hrsg Steam Drum Of Power Station
Product Details:
Place of Origin: CHINA
Brand Name: HD Boiler
Certification: ISO9001 , SGS , TUV , ASME
Model Number: Boiler Steam Drum
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiable
Packaging Details: Iron Frame Packing
Delivery Time: within 60-90 days after getting the down payment or L/C
Payment Terms: L/C, T/T
Supply Ability: 300 tons per month
Contact Now
Detailed Product Description
Style: Horizontal Usage: Industry/Power Station
Pressure: High/Low Pressure Structure: Fire/Water Tube
Color: Customer's Requirement Keywords: Boiler Drum
High Light:

heat exchanger hrsg steam drum


power station hrsg steam drum


Horizontal hrsg steam drum


Environmentally Friendly Horizontal Boiler Steam Drum for Industry and Power Station

Product Description


A steam drum is a standard feature of a water-tube boiler. It is a reservoir of water/steam at the top end of the water tubes. The drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture. The difference in densities between hot and cold water helps in the accumulation of the "hotter"-water/and saturated-steam into the steam-drum.




The main components in a boiler system are the boiler feedwater heaters, deaerator, boiler, feed pump, economizer, boiler, superheater, attemperator, steam system, condenser and the condensate pump. In addition there are sets of controls to monitor water and steam flow, fuel flow, airflow and chemical treatment additions.

Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation


Technical Parameter

Pressure Low Middle High Superhigh
Inner diameter(mm)




Thickness(mm) 16-25 32-46 60-100 80-100
Material Carbon steel Carbon steel & Alloy steel Carbon steel & Alloy steel Alloy steel




1. Chinese Famous Brand.

2. Premium Quality, Competitive Price.

3. Fast Delivery, Excellent After-sale Service.

4. Certificate ISO9001, ASME, ISO14001, SGS.

5. Compact structure, easy to install.

6.The exhaust gas passes through the force convection tube bundle, improving the efficiency of the boiler.


Company Profile

  • Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000 ㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.

Anti Wind Pressure Induction Steam Drum For Power Station CFB Boiler

Manufacturing equipment


Our products' quality is ensured by advanced, excellent facilities and manufacturing equipment. We have introduced 400 sets of advanced processing and inspection equipment, including plasma cutting machine, NC drilling equipment, automatic welding system, welding equipment and real-time online imaging detection system, etc., which successfully ensure excellent quality of our products.

SA16Gr70 Once Through Single Mud Drum In Boiler Level Control Stainless Steel


Design and development


Collect all parameters for product design, make design acording to the Supervisory Regulations on Boiler Safety Technology, other laws, rules, regulations and professional standards, and 100% meet the product standards and customers' requirements.


Supervision and confirmation


The quality and technical supervision administration authorizes the inspection agency stationed on site to supervise, inspect and test the process of boiler manufacturing.Accept supervision or confirmation of the third party or Customer's representative over the process of boiler manufacturing.
