|Place of Origin:||China|
|Brand Name:||HD Boiler|
|Certification:||ASME, SGS, ISO9001,TUV|
|Model Number:||Boiler Air Preheater|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Sea worthy Packing for Export|
|Delivery Time:||120 days after getting the down payment or L/C|
|Payment Terms:||L/C at sight, T/T,, Western Union|
|Supply Ability:||100 sets per month|
|Type:||Tubular||Application:||Thermal Power Station And Industrial Boilers|
|Material:||Thin-walled Steel Tube||Advantage:||Good Sealing, High Heat Transfer Efficiency|
boiler tubular air preheater,
tubular boiler air preheater,
CS Boiler Air Preheater
Air preheater is a kind of equipment which can improve the heat exchange performance of the boiler and reduce the energy consumption. The function of the air preheater is to heat the flue gas discharged from the tail flue of the boiler and transmit it to the air before entering the boiler through the radiator, so as to preheat the air to a certain temperature.
The air preheater is generally used for coal-fired boilers in power station.It can be divided into tubular type and rotary type. The rotary type can be further divided into wind hood rotary type and heating surface rotary type.Power stations usually use the heating surface rotary air preheater. Generally, the application in boilers is two-compartment, three-compartment and four-compartment, among which the four-compartment is more commonly used in CFB boilers.

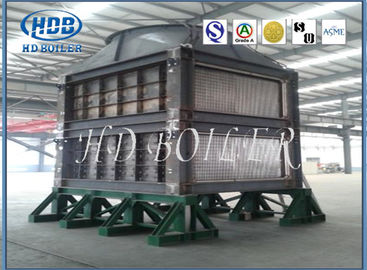

The main heat transfer component of tubular air preheater is thin-walled steel tube. The tubular air preheaters are mostly cubic. The steel tubes are arranged vertically and staggered with each other. Both ends are welded on the upper and lower tube sheets.The tubular air preheater is equipped with an intermediate tube sheet in the tube box. The flue gas passes through the preheater up and down the pipe, while the air passes through the preheater horizontally to complete heat transfer.
Tubular air preheater is widely used in power station boilers and industrial boilers because of its advantages of good sealing, high heat transfer efficiency, easy manufacturing and processing. The shortcomings of tubular air preheater are large volume, easy ash plugging of steel tube content, difficult cleaning and easy wear and tear at flue gas inlet.
|Horizontal layout||Vertical layout|
staggered arrangement /
staggered arrangement /
|Sealing of pipe and plate||
Packing heat- resistant material/
a,when gas scours external tube, welcoming smoke tubes have protective tile
Enamel air preheater products are classified as following by application
1.Enamel heat exchanger designed for denitration renovation projects
2.Enamel heat exchanger for circulating fluidized bed boiler and pulverized coal boilers Heat
exchanger parts for garbage incinerators and biomass boilers
3.Heat exchanger parts for grate furnaces, like chain grate furnaces4.Heat exchanger parts for gas-fueled boilers, such as kerosene boilers, coke ovens, etc.
