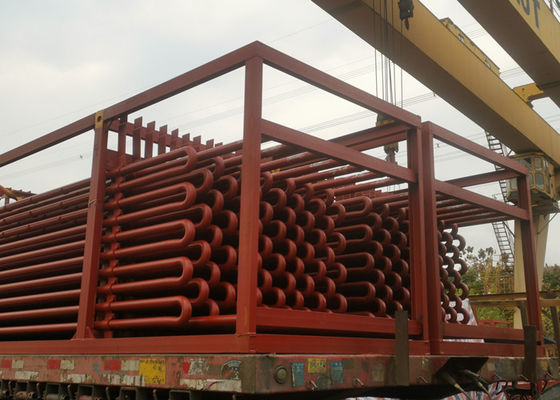

CFB Boiler Platen Superheater Hot Water U Shaped Tube eco friendly
Product Details
| Material: | Alloy Steel, Carbon Steel, SA210C SA213T22, Etc. | Usage: | Power Plant/CFB Boiler |
|---|---|---|---|
| Type: | Natural Circulation/Once Through | Structure: | Fire/Water Tube |
| Output: | Hot Water/Steam | Fuel: | Coal/Gas/Oil-fired, Water Heat |
| Condition: | New | Dimension(L*W*H): | Customization |
| Standard: | ASTM, EN Or ISO Etc. | Weight: | Min. 10 Tons; Max. 1000 Tons |
| Highlight |
CFB Boiler platen superheater,Hot Water platen superheater,CFB Boiler super heaters |
||
Product Description
ASME Carbon Steel Boiler Superheater And Reheater Coils
Superheater Coil Introduction
Superheater Coil Details
|
1.Our products can be modified according to our customers' needs and the situation.
2.we design and manufacture safe,reliable and efficient products.HD BOILER has also completed stand-alone product quality assurance systems.
3.To ensure safety operation, the LT superheater uses SA210 Gr.A1 seamless steel tubes, and the HT superheater uses low-alloyed SA213 T22 seamless steel tubes.
Technical parameter
Features 1. The equipment body can be designed into many modules to ensure the long term and stable running; 2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage 3. Improve the heat transfer efficiency 4. Structure arrangement: In line or staggered arrangement |
|||||||||||
Manufacturing and acceptance criteria
| · | JB/T6512 "boiler with a high-frequency resistance welding spiral fin tube manufacturing technology conditions" |
| · | HG/T3181 "high-frequency resistance welding spiral fin tube" |
| · | JB/T6511 "spiral finned tube test technical conditions." |
| · | JB1611 "boiler tube mane box assembly conditions" |
| · | JB/T1612 "boiler pressurufacturing conditions." |
| · | JB16I3 "boiler pressure parts welding conditions." |
*Note:HD BOILER can bespoke special type of economizer according to customer's requirement.
Test
| 1 | Latest type of 'U' bending machine is used for precision cold bending of tubes. |
| 2 | Bending is done for all kind of heat exchanger, condenser, economizer, boiler tubes in Stainless Steel Seamless as well as welded. |
| 3 | Subsequent to 'U' bending tubes are hydro tested & stress relieved if asked for. |
| 4 | Also mock-up pieces are prepared for determining thickness reduction on the bend portion. |
| 5 | Dye penetrant testing on the bend portion is done ro detect cracks, flaws or any type of defect. |
| 6 | Special packing is provided to prevent any damages during transit. |
