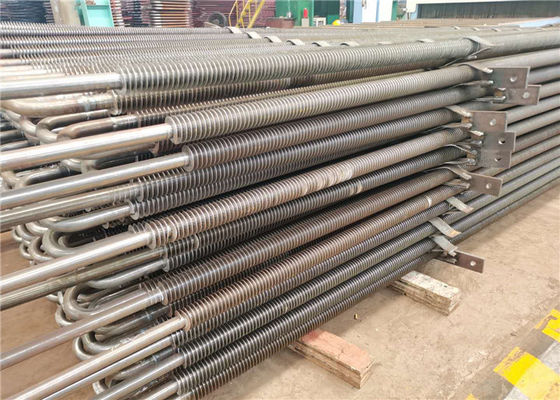

0.5mm Industrial Compact Extruded Heat Exchanger Fin Tube
Product Details
| Pressure: | High Pressure | Range Of Applications: | Power Station , Industrial |
|---|---|---|---|
| Specification: | Customized | Surface Treat: | Painted |
| Function: | Heat Exchanger | Material: | Carbon Steel / Stainless Steel |
| Highlight |
industrial heat exchanger fin tube,extruded heat exchanger fin tube,0.5mm Heat Exchanger Fin Tube |
||
Product Description
Compact Structure Heat Exchanger Fin Tube For Power Plant Economizer
Product Description
With an aim to increase the heat exchanging efficiency, It's usually to extend the surface area (or internal surface area) by adding fins onto a tube, which, through this manufacturing process, would greatly improve and upgrade the heat transferring efficiency of heating tube, it's called Finned Tube or Fin Tubes.
♦ Welded finned tubes
♦ Extruded finned tubes
♦ Welded helical solid finned tubes
♦ Welded serrated finned tubes
♦ Welded helical serrated finned tubes
Specifications
In order to ensure that these units met customer expectations, a series of in-process testing was performed in accordance with Fin Tube Products' quality control system. In addition, the products' quality was also verified by an onsite independent testing company.
| Base Tube Material | Stainless Steel, Carbon Steel, Alloy Steel, Copper Alloy,Aluminum ,SA179 | ||
| Fin Material | Aluminum, Copper Alloy, Stainless Steel, Carbon Steel | ||
| Standard | ASME SA213/ASTM; ASME EA 106, ASME SA178, ASTM B1111 | ||
| Fin depth | 0.5-3mm | ||
| Base pipe O.D | 12.7-18mm | ||
| Fins per inch | 8-20Nos (as customer's request) | ||
| Test Requirement | Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement. | ||
| Application | Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc. |
||
| Technical parameters | The high degree of fin 0-16mm(or outside diameter of fin φ25-φ75); Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m. |
| Single metal rolling finning tube | Pure aluminum 1060 or aluminum alloy 6063,6061. Outside diameter Shall be less than 40mm |
| Double metal rolling finning tube | Tube-based protection from the outer layer of aluminum tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless steel tube and copper tube can also be used, as well as titanium alloy tube |
| Package | The aluminum finned tubes are well packed in plastic film in the inner and steel fram in the outer |
Company Information
HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
