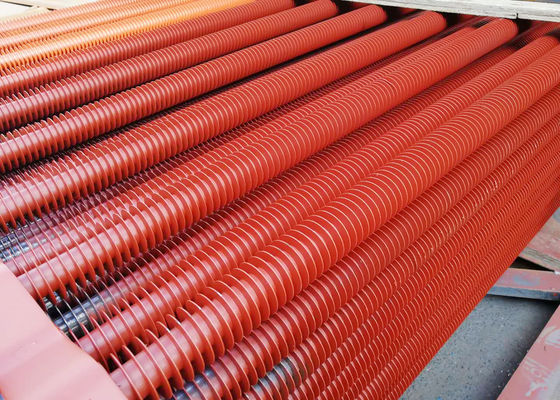

Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube

Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube

  • Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube
  • Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube
  • Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube
  • Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube
Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube
Product Details:
Brand Name: HDB
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Sea worthy Packing for Export
Delivery Time: 30~50 days
Contact Now
Detailed Product Description
Product Name: Spiral Finned Tube Application: Boiler Economizer, Air Preahter
Material Of Base Tube: Carbon Steel Or Stainless Steel Packing: Seaworthy Packing
High Light:

boiler economizer fin tube

,

Air Preheater boiler fin tube

,

Extruded Boiler Fin Tube

Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube



Spiral Fin Tube

Due to the features that higher heat transfer coefficient, larger heat transfer area and less consumption of steel etc, Threaded pipe has been recognized as a kind of strengthening heat transfer element. The research report pointed out that the design of is reasonable. So the flue gas heat transfer efficiency of threaded pipe is 1. 6 times of light tube. Because the threaded pipe has the remarkable characteristics, it has been more and more widely used in boiler manufacture. Features:



(1) The heat transfer of a thread smoke tube is as the same as that of 1.7 to 1.8 root ordinary pipes after application of the optimization of heat transfer and flow resistance when it is used on the boiler. This not only can reduce the pipe numbers, but also can lessen the diameter of the pot shell, thus, to save the steel and to cut down capital.



(2) The heat transfer surface area is 1.5 to 2.0 times of the light pipe, this greatly improves the activity of the cooling methods and strengthen the tube inside boiling and condensation transfer effects in the application of air conditioning refrigeration industry.



(3)Setting up in heat exchange equipment application on decoration, steel or stainless steel tube through a molding machine rolling, spiral tube fouling are spiraling in appearance, set decoration equipment running line temperature changes make the pipe produces expansion and contraction, thus can make the dirt to fall off; For the cylinder and the light pipe scale layer, without the power off.



Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube 0

Product Name Spiral Fin Tube
Material Copper, Aluminum, e.tc
Type Extruded
Packing Strong Plywood Case With Steel Frame
MOQ 100 Meter
Warranty 1 Year
Payment T/T,L/C
Application Heater,Heat Exchanger Parts etc



Stainles Steel Carbon Steel Spiral Finned Tube Heater Fin Tube 1

FIN TUBE REFERENCE
TYPE NAME BARE TUBE MATERIAL FIN TUBE MATERIAL BARE TUBE DIAMETER (MM) FIN SPECIFICATION (MM)
FIN PITCH FIN HEIGHT FIN THICK
EMBEDDED G-TYPE FIN TUEB CARBON STEEL COPPER,STAINLESS STEEL,ALLOY ALUMINUM 16-63 2.1-5 <17 ~0.4
EXTRUDED SINGLE METAL COMBINED METAL CARBON STEEL, COPPER STAINLESS STEEL,ALLOY COPPER ALUMINUM 8-51 1.6-10 <17 0.2-0.4
LOW FIN TUBE T-TYPE FIN TUBE CARBON STEEL, COPPER STAINLESS STEEL,ALLOY / 10-38 0.6-2 <1.6 ~0.3
BAMBOO TUBE CORRUGATED TUBE CARBON STEEL,COPPER STAINLESS STEEL / 16-51 8-30 <2.5 /
WOUND L/KL/LL TYPE FIN TUBE CARBON STEEL, COPPER STAINLESS STEEL,ALLOY COPPER ALUMINUM 16-63 2.1-5 <17 ~0.4
STRING STRING FIN TUBE ALUMINUM,COPPER CARBON STEEL STAINLESS STEEL ALUMINUM,COPPER CARBON STEEL STAINLESS STEEL 25-38 2.1-3.5 <20 0.2-0.5
U-TYPE U-TYPE TUBE CARBON STEEL,COPPER STAINLESS STEEL / 16-38 / / /
WELDING HF-WELDING FIN TUBE CARBON STEEL, ALLOY STAINLESS STEEL CARBON STEEL, ALLOY STAINLESS STEEL 16-219 3-25 5-30 0.8-3
H/HH TYPE FIN TUBE CARBON STEEL, ALLOY STAINLESS STEEL CARBON STEEL, ALLOY STAINLESS STEEL 25-63 8-30 <200 1.5-3.5
STUDED FIN TUBE CARBON STEEL, ALLOY STAINLESS STEEL CARBON STEEL, ALLOY STAINLESS STEEL 25-219 8-30 5-35 Φ5-20
