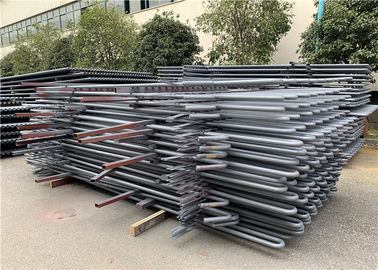

Power Plant Boiler Spare Parts Superheater And Reheater Assemblies With TP304 Shield
Product Details
| Fuel: | Coal | Type: | Energy Saving |
|---|---|---|---|
| Range Of Applications: | US Power Plant | Specification: | Customized |
| Surface Treatment: | Anti Corrossion | Certification: | ASME |
| Highlight |
TP304 Shield Superheater And Reheater,TP304 Shield boiler superheater,power plant superheater and reheater |
||
Product Description
Power Plant Boiler Spare Parts Superheater And Reheater Assemblies With TP304 Shield
Superheater&Reheater, Custom Component For Boiler
A superheater is a component that heats saturated steam in an industrial boiler, turning it into superheated steam. Our superheater guarantees that the superheated steam temperature will fluctuate to within an allowable range (normally varies from 540°C to 500°C)when the boiler is over loaded.
Competitive Advantage
A superheater is a component that heats saturated steam in an industrial boiler, turning it into superheated steam. Our superheater guarantees that the superheated steam temperature will fluctuate to within an allowable range (normally varies from 540℃ to 550℃) when the boiler is over loaded.
Thereheater returns the exhaust steam from high-pressure stage of a turbine back to the boiler for reheating, then sends the reheated steam to the low-pressure stage of a turbine. Through this process, the steam temperature in a turbine is controlled to within an allowable range.
For over 30 years, Hua Dong Boiler has been consistently innovating and improving our boiler superheaters and reheaters. The improvements in bending, welding and design ensure our products meet both European and American standards, ensuring a reliable performance.
Layout of superheater and reheater within high temperature boiler
① Final Superheater
② Final Reheater
③ Low-Temperature Superheater
④ Low-Temperature Reheater
Materials for superheater & reheater
Carbon steel
stainless steel
nickel and special alloys
Tube diameter range of our superheater & reheater
32-42mm
Types of superheater & reheater
- Low-Temperature Superheater
- Platen Superheater
- High-Temperature Superheater
- Coil Type Heat Exchanger
- Steam Superheater
- Roof Superheater
| Type | Advantages | Disadvantages | Supporting method |
| Pendant-type | 1.Firm structural support | 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. | supported from above |
| Inverted-type | 1.Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal -type |
1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flam directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
Details
| Setting Information | |
| process | welding |
| structure | horizontal or vertical |
| material | carbon steel, alloy steel |
| tubes | φ32, 38, 42, etc. |
| size | customized |
| brand | HTEG |
| Warranty | 18 months |
Design structure
- heating saturated steam, temperature up to 900 degree C.
- high efficiency, >90%.
- high speed heating.
- design with stainless steel.
- long design service life, 15 years.
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
HD Boiler offers a best in class facility
For over 30years, Hua Dong Boiler has been consistently innovating and improving our boiler superheaters and reheaters.The improvements in bending,welding and design ensure our products meet both Euorpean and American standards, ensuring a relabile performance.
