|Place of Origin:||China,Zhangjiagang|
|Brand Name:||HD BOILER|
|Certification:||ISO9001 , SGS , TUV , ASME , EN|
|Model Number:||Economizer For Boiler|
|Minimum Order Quantity:||1 Set / Sets 10tons|
|Packaging Details:||Seaworthy Packing|
|Delivery Time:||45 days|
|Payment Terms:||Western Union, L/C, T/T|
|Supply Ability:||500 Tons per month|
|Name:||Boiler For Economizer||Usage:||Biomass Boiler Economizer|
|Material:||Carbon Steel Seamless Tube||Type:||Natural Circulation|
|Structure:||Hot / Water Tube||Output:||Hot Water/Steam|
seamless tube boiler economizer,
H Fin Boiler Economizer,
High Frequency Welding Boiler Economizer

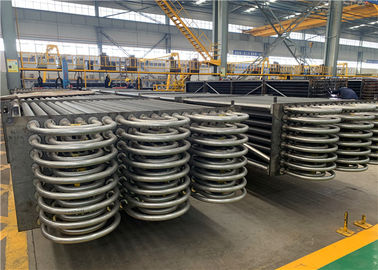

Biomass Boiler Economizer With Carbon Steel Seamless Tube H Fin High Frequency Welding
Quick Details Specifications
The boiler economizer is an indispensable mechanical device for coal fired boilers, and is located at the boiler flue, where heat is captured from the flue gas in order to pre-heat cold water inlet or heat the boiler feed water. Our economizers are generally made of 20 low and medium pressure boiler pipes, 20G seamless steel tubes or ASME grade steel tubes. It reduces the flue gas temperature and maximizes the heat recovery to help customers reduce fuel costs. When entering the steam drum, the temperature of the feed water is increased after it has been heated using the economizer. The thermal stress caused by the temperature difference between the steam drum wall and the feed water is reduced, which reduces the shrink and swell in the steam drum. Our economizer is an excellent, less expensive replacement for high temperature boiler water wall tubing, thus reducing manufacturing costs for coal fired boilers.
(1) The economizer is a steam generation system as like a boiler. when the exhaust gas discharge from the engine cylinder through the exhaust valve it goes to the boiler for generate steam by heating of water.
(2) After those gas it goes through the economizer the remaining exhaust gas temperature is heated the water in economiser. it help to generate steam, and it is improving the efficiency and save the fuel consumption
(3) An economizer uses the waste heat from the boiler exhaust, that would otherwise be lost to atmosphere to (in most cases) preheat the feed water into the boiler.This improves the boiler efficiency and reduces fuel costs.
1.Fuel saving: After the high temperature fuel gas released by fuel combustion transfers to the boiler water wall tubing, superheater, and reheater, the temperature is extremely high, the economizer makes it ideal for preventing heat loss. The economizer located at the flue of the boiler reduces the flue gas temperature, and maximizes the heat recovery to lower customer fuel costs.
2.Improvement of boiler steam drum working conditions: When entering the steam drum, the temperature of the feed water is increased after it has been heated using the economizer. The thermal stress caused by the temperature difference between the steam drum wall and the feed water is reduced, thus reducing the shrink and swell of the steam drum, and extends the service life.
3.Cost reduction of coal fired boilers: Water is being heated in the boiler economizer made using low temperature material. This makes the economizer a less costly replacement for high temperature boiler water wall tubing, and reduces overall boiler manufacturing costs.
|specifications of finned tube||unit(mm)|
|finned tube thread pitch||5-30|
|finned tube length||≤12000|
*Note:HD BOILER can bespoke special type of economizer according to customer's requirement.
Internal heat exchangers
1.Subcooling may also be produced by superheating the gas leaving the evaporator and heading to the gas compressor.
2.These systems withdraw heat from the liquid line but heat up the gas compressors suction.
3.This is a very common solution to insure that gas reaches the compressor and liquid reaches the valve.
4.It also allows maximum heat exchanger use as minimizes the portion of the heat exchangers used to change the temperature of the fluid,and maximizeds the volume in which the refrigerant changes its phase.
