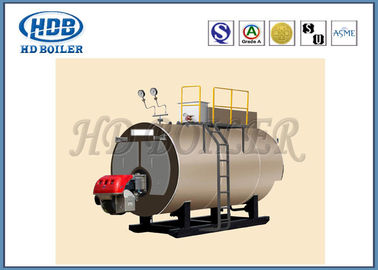

Industrial Power Steam Hot Water Boiler Multi Fuel Horizontal Fully Automatic with ASME, TUV

Industrial Power Steam Hot Water Boiler Multi Fuel Horizontal Fully Automatic with ASME, TUV

  • Industrial Power Steam Hot Water Boiler Multi Fuel Horizontal Fully Automatic with ASME, TUV
  • Industrial Power Steam Hot Water Boiler Multi Fuel Horizontal Fully Automatic with ASME, TUV
  • Industrial Power Steam Hot Water Boiler Multi Fuel Horizontal Fully Automatic with ASME, TUV
  • Industrial Power Steam Hot Water Boiler Multi Fuel Horizontal Fully Automatic with ASME, TUV
Industrial Power Steam Hot Water Boiler Multi Fuel Horizontal Fully Automatic with ASME, TUV
Product Details:
Place of Origin: China
Brand Name: HD BOILER
Certification: ISO9001 , ASME , GradeA , SGS , EN ,TUV
Model Number: CLHS , CWNS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Seaworthy Packing for exporting
Delivery Time: 75-120 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets / Year
Contact Now
Detailed Product Description
Function: Steam Boilers Installation: Packaged Boiler
Media: Steam Pressure: Micro - Pressure
Cladding Material: SUS304, 316L Port: Shanghai
High Light:

ASME Steam Hot Water Boiler

,

SUS304 Steam Hot Water Boiler



Industrial Power Steam Hot Water Boiler Multi Fuel Horizontal Fully Automatic







Product Description


CLHS automatic oil(gas) fired atmospheric pressure hot water boiler adopts vertical/horizontal structure.Fuel is burning under micro-pressure,high temperature smoke in the funace to complete the process of radiation and convection heat after entering the atmosphere.It can be used for heating,living water and heat production to provide endless power.



Technical Parameters


Model CLHS 0.06-85/60-Y.Q 0.12-85/60-Y.Q 0.18-85/60-Y.Q 0.24-85/60-Y.Q 0.35-85/60-Y.Q 0.48-85/60-Y.Q
Item Unit
Rated power MW 0.06 0.12 0.18 0.24 0.35 0.48
Total heat 104Kcal 5 10 15 20 30 40
Rated Working Pressure MPa Atmospheric Pressure

Fuel

Consumption

Light Diesel Kg/h 5.4 10.8 16.2 21.6 32.5 43.2
Town gas Nm3/h 14.2 28.3 42.5 56.6 85 113.2
Natural Gas Nm3/h 5.8 11.7 17.5 23.4 35 46.8
LPG Nm3/h 2.5 5 7.5 10 15 20
Water Inlet dia. DN 50 65 65 65 65 80
Return pipe dia. DN 50 65 65 65 65 80
Blowdown Valve Dia. DN 25 25 25 25 25 40
Voltage V 220 220 220 220 380 380
Overall Dimension mm

850×760

×1320

1010×860

×1600

1170×910

×1820

1290×1030

×1980

1480×1180

×2050

1570×1270

×2120

Net Weight Kg 280 420 460 530 790 960



Industrial Power Steam Hot Water Boiler Multi Fuel Horizontal Fully Automatic with ASME, TUV 0



Features


• Imorted high-quality burner(Low NOX burner),the harmful components in flue gas is lower than the National Standard (NOx emission is lower than 400mg/m3),so it's environmentally friendly product.Pressure atomization,low noise,high efficiency and safety,(fuel oil)is burning completely,and environmental indicators are in line with national requirements.

• Boiler body is connected to the atmosphere,equipped with expansion tank,without potential safety problems under the condition of atmospheric pressure operation.

• Boiler operation is achineving automatic control and automatic adjustment of water outlet temperature.



Quatily Control


• Fabrication area of 200,000 square meters

• 150 Engineers

• 600 Coded welders

• 60 Licensed Inspectors(NDT Level-III instructors)

• Class-A Licenses for Design and Manufacture Boiler

• ISO 9001:2008 Quality System

• ASME Certificate of Power Boilers

• ASME 'S','U' and NB stamp authorization





Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
