Certificated Carbon Steel Heat Exchanger Fin Tube Compact Structure

Certificated Carbon Steel Heat Exchanger Fin Tube Compact Structure

  • Certificated Carbon Steel Heat Exchanger Fin Tube Compact Structure
  • Certificated Carbon Steel Heat Exchanger Fin Tube Compact Structure
  • Certificated Carbon Steel Heat Exchanger Fin Tube Compact Structure
  • Certificated Carbon Steel Heat Exchanger Fin Tube Compact Structure
Certificated Carbon Steel Heat Exchanger Fin Tube Compact Structure
Product Details:
Place of Origin: CHINA
Brand Name: HD BOILER
Certification: ISO9001 , SGS , TUV , ASME , EN
Model Number: Spiral tube
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Iron Frame Packing
Delivery Time: 30 - 60 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 Tons Per Month
Contact Now
Detailed Product Description
Application: Boiler System HS Code: 3215960855
Surface Treatment: Painted Function: Heat Exchanger
Specification: Customized Fuel: Coal
High Light:

Compact Boiler Fin Tube

,

Certificated Boiler Fin Tube

,

Painted Boiler Fin Tube





Certificated Carbon Steel Heat Exchanger Fin Tube Compact Structure



Product Description of Fin Tube




Unlike a plate fin which has multiple tubes going though a common fin,a spiral finned tubes has its own individual fin"wrapped"onto the outside of the tube.This allows the finned tubes to be arranged in any desired pattern,and any X and Y distance apart.A flat strip of material is helically wound on to a tube,much like threads on ascrew,at the desired fins per inch.The finned tube is then cut to the required coil finned length.Each finned tube is [laced inside the coil casing to create the coil's finned face area and rows deep.



Technical Parameters of Fin Tube


Spiral Wrapped Fin
Features Advantages
Each tube is individually finned Increased thermal conductivity
Less fin material used
Ability to replace a single damaged tube
More compact fin bundle
Tube face and row centers can vary
Allows coil to better fit with existing case height
Pitch to drain a multi-row for vertical airflow
Tension Bond Use various fin and tube materials
Use various fin and tube thicknesses
Embedded Fin Maintain fin bond at high temperatures
Header Accommodates header thermal expansion
Allows longer header stubs

Technical parameters The high degree of fin 0-16mm(or outside diameter of fin φ25-φ75);
Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
Single metal rolling finning tube Pure aluminum 1060 or aluminum alloy 6063,6061.
Outside diameter Shall be less than 40mm
Double metal rolling finning tube Tube-based protection from the outer layer of aluminum
tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless
steel tube and copper tube can also be used, as well as titanium alloy tube
Package The aluminum finned tubes are well packed in plastic film in the inner and steel fram
in the outer

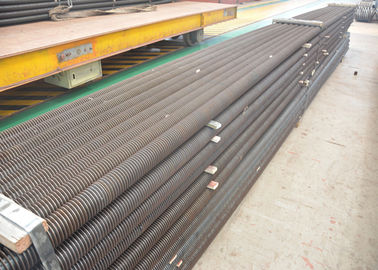

Certificated Carbon Steel Heat Exchanger Fin Tube Compact Structure 0


Features of Fin Tube



1. The equipment body can be designed into many modules to ensure the long term and stable running.
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage.
3. Improve the heat transfer efficiency.
4. Structure arrangement: In line or staggered arrangement.



Company Introduction




Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
