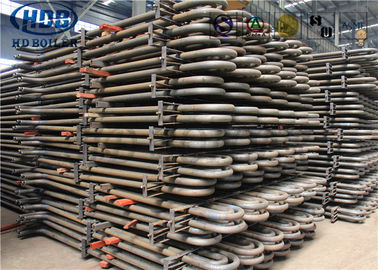

ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie

ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie

  • ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie
  • ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie
  • ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie
  • ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie
ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie
Product Details:
Place of Origin: Zhangjiagng City
Brand Name: HD Boiler
Certification: ISO9001 , SGS , ASME "S" "U"
Model Number: Superheater For Overhaul
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 35Days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 1200 Tons / Month
Contact Now
Detailed Product Description
Fuel: Coal Type: Energy Saving
Range Of Applications: US Power Plant Specification: Customized
Surface Treatment: With 625 Overlay Material: Stainless Steel
High Light:

ASME Standard Boiler Pressure Parts

,

Boiler Pressure Parts Superheater

,

boiler superheater with 625 overlay



ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie







Working Principle



1,Superheater is the part that heats the steam from the saturation temperature to the superheater by the boiler. It is also called the superheater.
Superheater can be divided into convection type, radiant type and semi-radiant type according to heat transfer mode;
According to the characteristics of the structure, it can be divided into serpentine tube type, screen type, wall type and wall type.
2,They all consist of a number of parallel pipes and inlet and outlet manifold.
Most industrial boilers do not have superheaters because many industrial processes and utilities require only saturated steam.
Superheaters are generally installed in power stations, locomotives and Marine boilers to improve the thermal efficiency of the entire steam power plant.



Super heater types:
1. Radiant super heater: it is the earliest type of super heater and it is located above or behind banks of water tubes to protection them from direct flam or fire.
Parameters that increases the convection

a. Increasing the fuel-and air flow (combustion gas flow)
b. Increasing the mass flow rate of the steam

Radiation is mainly dependent on the flam temperature. as the steam flow rate increases the exit temperature become lower.
Radiant super heater
They are placed exposed to the heat source whcih requires the improvement of metal temperatures.

Radiant and convetive super heaters and reheaters are used for high temperature steam.
The accessory of high temperature radiant steam super heater in boiler

It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have φ32, φ38, φ42 or other types of specifications, according to user's needs separately.

Reheaters
They are the sane as the super heaters but as their exit temperature is a little bit less than super heaters and their pressure is 20% -25% less than the super heater, they can stand less quality material alloys.

Application:
Steam super heater is consisted of dense tube coils and is placed in the flue under the tempearture 450ºC-1000ºC.
For power plant boiler capacity over 10Mpa, platen and coiled superheater are usually adopted.





What are the differences of Superheater And Reheater?



Type Advantages Disadvantages Supporting method
Pendant-type 1.Firm structural support 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. supported from above
Inverted-type 1.Proper drainage of the condensed steam 1. Lack the structural rigidity, especially in high speed gas flow Supported from below
Horizontal -type

1. Proper drainage

2. Good structural rigidity.

1. They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.




Details



Setting Information
process welding
structure horizontal or vertical
material carbon steel, alloy steel
tubes φ32, 38, 42, etc.
size customized
brand HTEG
Warranty 18 months




Design structure

  • 1. heating saturated steam, temperature up to 900 degree C.
  •
  • 2. high efficiency, >90%.
  •
  • 3. high speed heating.
  •
  • 4. design with stainless steel.
  •
  • 5. long design service life, 15 years.



ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie 0ASME Standard Boiler Pressure Parts Superheater With 625 Overlay And Support Tie 1



Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.





HD Boiler offers a best in class facility



For over 30years, Hua Dong Boiler has been consistently innovating and improving our boiler superheaters and reheaters.The improvements in bending,welding and design ensure our products meet both Euorpean and American standards, ensuring a relabile performance.



We are the qualified supplier for the following large boiler manufacturers in China:



  • Shanghai Boiler Works Ltd.
  • Hang Zhou Boiler Group Co. Ltd.
  • Harbin Boiler Co., Ltd.
  • Dong Fang Boiler Group Co., Ltd.
  • Wuxi Huaguang Industrial Boiler Co., Ltd.
  • Jiangxi Jianglian Energy & Environment Co., Ltd.
  • Dalian Boiler Works
  • Suzhou Hailu Heavy Industry Co., Ltd.
