| Place of Origin: | China |
| Brand Name: | HD Boiler |
| Certification: | ISO9001,ASME,Grade A,SGS,EN |
| Model Number: | Boiler Finned Tube |
| Minimum Order Quantity: | 500 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Iron Frame Packing |
| Delivery Time: | 30 - 60 Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Tons Per Month |
| Condition: | New | Structure: | Water Tube |
|---|---|---|---|
| Fuel: | Biomass, Coal-Fire | Pressure: | Low / High Pressure |
| Range Of Applications: | Power Station, Industrial | Specification: | Customized |
| Manufacturing Level: | A | Surface Treatment: | Painted |
| High Light: | spiral fin tube,heat exchanger fin tube |
||

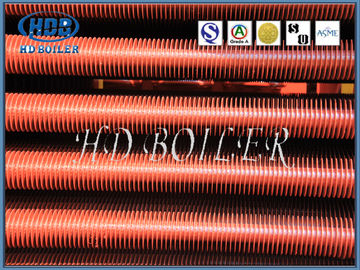

Spiral Finned Boiler Fin Tube / Heat Exchanger Tubes High Efficiency
Technical Parameters
| Item | Base Tube O.D (mm) |
Base Tube Thickness (mm) | Fin Height (mm) | Fin thickness(mm) | Fin Pitch(mm) |
| Range | 25.4 mm ~1600mm | 2.5 mm ~40 mm | 0.5 mm ~20.0 mm | 0.5 mm ~3.0 mm | 5 mm ~ 25.4 mm |
| Material | Carbon Steel,Alloy Steel,Stainless Steel | ||||
| Length | 0<L≤ 12000 | ||||
| Product | Spiral fin Tube |
| Base Pipe | Welded or Seamless |
| Material | carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys. |
| Application | H economizer,H evaporator,H superheater,H air heater and etc. |
Spiral type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.
Detail
In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.
Structure
Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
