Longitudinal Spiral Fin Tube Boiler Steam Header Reduced Thermal Diviation

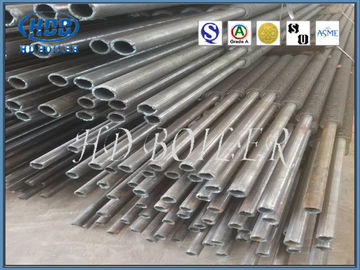

Environment Friendly Stainless / Alloy Steel Boiler Longitudinal Spiral Fin Tube

Function

Header is guaranteed working medium mixing heating boiler working medium pipes usually industrial boiler furnace wall is made up of rows of tubes (water wall) together, but boiler huge volume, complicated structure, cannot guarantee that all the working medium in the pipe of heat absorption capacity is the same, different parts of heat absorption differs a lot, install header can let each pipe working medium inside converge here, the redistribution to the next level in the tube, so that we can reduce the thermal deviation, make the working medium heat flow cooling boiler thermal efficiency of boiler is optimized to improve;In addition, the size, quantity and arrangement of the pipes in the upper middle and lower parts of the boiler are different.

Production Information

In order to improve the efficiency of the boiler, the tube boiler was developed to increase the heat transfer area.The pot water flows into the lower box from the pot drum through the descending tube, and is distributed to each tube bundle by the box. The water in the tube bundle continuously absorbs heat energy, and is collected in the box above and then flows back into the pot drum.We call the top and bottom boxes collection boxes or header boxes.Header (also known as header), is an important part of the boiler, divided into upper header and lower header.

Details

The pressures and temperatures that headers have to withstand depend on the component to which they are connected. A header connected to an economizer or to water wall panels is subject to less severe requirements on the material than a header connected to superheaters or reheaters.

Depending on the temperature and pressure of headers, Vallourec supplies tubes in carbon steel to high-alloy ferritic steels such as T/P91 or T/P92, with sizes ranging from 88.9 mm to 406.4 mm.

Features

The pressures and temperatures that headers have to withstand depend on the component to which they are connected. A header connected to an economizer or to water wall panels is subject to less severe requirements on the material than a header connected to superheaters or reheaters.

Depending on the temperature and pressure of headers, Vallourec supplies tubes in carbon steel to high-alloy ferritic steels such as T/P91 or T/P92, with sizes ranging from 88.9 mm to 406.4 mm.

Classification

Steam distribution headers are fabricated out of carbon steel or alloy steel seamless tubes. Customized or tailor made items are offered. Headers, after fabrication, are stress relieved to make the Steam distribution headers free from stresses. They are big pipe headers that transfer water from the downcomers to the risers through a combustion zone where the water gets partially heated to steam from the heat of fuel combustion.
