ASME SA210C EN3834 Boiler Membrane Wall Alloy Steel Fireproof
Product Details
| Length: | Customer's Choice | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Carbon Steel, Stainless Steel, Alloy Steel | Function: | Wall Decoration And Heat Insulation,construction Building,Waterproof,heat Insulation,fireproof |
| Advantage: | Eco-friendly,fireproof,Easy Install,waterproof | Fireproof: | Grade A |
| Highlight |
EN3834 Boiler Membrane Wall,SA210C Boiler Membrane Wall |
||
Product Description

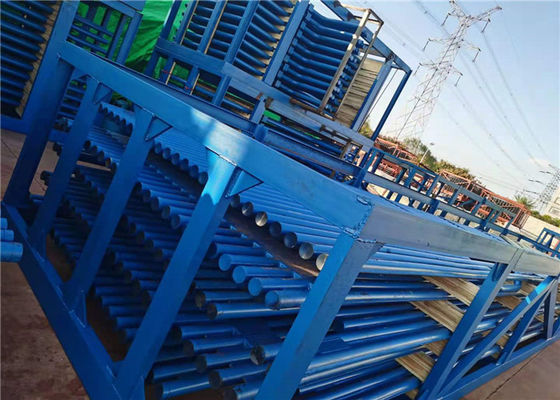

Water Wall Panel Overlay for Boiler ASME SA210C EN3834 High safety Level HDB brand
GENERAL DESCRIPTION: Water Wall Panel Overlay
Water wall panels are the main heating surface of boilers, composed of numbers of rows of steel tubes, arranged around the boiler corner. Inside is the flowing water or steam, and the outside accepts the heat of the flame in the furnace of the boiler, mainly absorbing the radiation heat of the high temperature combustion products in the furnace. The working fluid rises in it and evaporates by heat.
The full name is water wall tube, old name is water-cooled wall,also called riser. Usually laid vertically on the inner wall of the furnace, they are used to absorb the radiant heat by the flame and high temperature flue gas.They are the main form of heating surfaces for the various modern boilers, also the basic parts of water circulation circuit. For they have the functions of cooling and protecting the furnace wall, so called water wall panels.
Advantages of Membrane Water Wall
1). To guarantee the leakproofness of furnace wall and reduce the air leak of combustion chamber.
2). To achieve the full water cooling of combustion chamber, and the boiler accessories membrane water wall is benefit to prevent coking under the condition of supplemental firing.
3). The thermal storage capacity is small, the warming of combustion chamber is fast and the cooling is also fast, which could shorten the cooling time of boiler’s start and furnace shut down.
4). It is good to adopt top supported water cooled wall and it could reduce the load of boiler framework, which is benefit to overhang.
5) Compared with the bare tubes, the membrane water wall improves the heat absorption capacity of tubes.
6) The factory direct boiler membrane water wall could improve the Preliminary combination degree of boiler parts and reduce the installation workload.
Parameter
|
Product Name
|
Membrane Water Wall
|
|
Applied Area
|
Water tube boiler
|
|
Material
|
- Carbon Steel : 20#, 20G, A195, A-1
- Alloy Steel : 15CrMoG, T11
|
|
Standard
|
China GB, ASME
|
|
Manufacturer Grade
|
China A Grade, ABS Certificated, TUV Certificated
|
|
Working Temperature
|
Saturation Temperature
|
|
Tube Specification
|
- Common use : Φ42, Φ51, Φ57, Φ60 mm
- Other
|
|
Tube Thickness
|
As per Customer requirements
|
|
Tube Pitch (c-c)
|
95 mm, 100 mm, 105 mm, 110 mm
|
|
Steel Flat Thickness
|
As per Customer requirements
|
|
Bending
|
Panel Bending
|
|
Welding
|
Automatic GMAW, Automatic SAW
|
|
Welding NDT
|
100% RT on tube butt welding
|
|
Air Tightness
|
Excellent
|
|
Brick Work
|
Not Required
|
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
