Double H And Boiler Fin Tube Heat Exchanger Heat Transfer Boiler Parts
Product Details
| Material: | Carbon Steel / Alloy Steel/Stainless Steel | Painting: | Customized |
|---|---|---|---|
| Standard: | ASME, ISO, TUV, GRADE A | Dimension: | Customized |
| Dust Volume: | Little Dust | Type: | Natural Circulation One Through |
| Condition: | New | Packing: | Iron Frame Package |
| Highlight |
spiral fin tube,heat exchanger fin tube |
||
Product Description

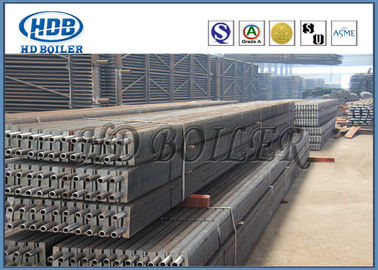

Double H And Tube Heat Exchanger Heat Transfer Boiler Parts Boiler Fin Tube
Product description
Double-H finned tube is efficient heat transfer parts for boiler with spiral fin,it's heat transfer area is several times of bare tubes.Which can improve heat transfer,reduce flow resistance and material consumption.
Double-H finned tubes are now widely used in various boilers.It can be manufactured in a variety of ways,including high frequency resistance welding spiral finned tube,brazing spiral finned tube and intergral spiral finned tube.
H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer, which has high efficiency,little resistance,less wear and light weight.
|
Product
|
H-fin Tube
|
|
Base Pipe
|
Welded or Seamless
|
|
Material
|
carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys.
|
|
Application
|
Economizer, Evaporator, H uperheater, H air heater and etc.
|
Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Advantages
1.Increase heat transfer area in effective space to improve heat transfer effect.
2.Reduce the space taken up by heat surface,reduce volume,especially suitbale for quick loading boilers.
3.Reduce equipment costs and increase equipment safety.
4.Reduce operation costs.
5.Improve the anti-seismic capability of tubes as increase finned tube stifness.
Specifications
| NO. | Specification(mm) | OD | Wall thickness |
| 1 | ¢32*3 | 32(33) | 3+0.5 |
| 2 | ¢32*4 | 32(33) | 4+0.5 |
| 4 | ¢38*4 | 38(39) | 4+0.5 |
| 4 | ¢38*5 | 38(39) | 5+0.5 |
| 5 | ¢42*4 | 42(43) | 4+0.5 |
| 6 | ¢42*5 | 42(43) | 5+0.5 |
| 7 | ¢50*6 | 50(51) | 6+0.5 |
Applications
The fin tubes are mainly used in heating(gas-fired boilers, condensing boilers, flue gas condensers), in mechanical and automotive engineering(oil coolers, mine coolers, air coolers for diesel engines), in chemical engineering(gas coolers and heater, process cooler), in power plants(air cooler, cooling tower), and in nuclear engineering(uranium enrichment plants).
Types
High frequency resistance welding spira finned tube
High-frequency resistance welding spiral fin tube is in be weldment import high power high frequency current, by using the current welding joint contact area and adjacent area to produce the resistance of the hot melt welding contact surface to melt or half of the plastic state, and then give the appropriate pressure welding contact surface, thus complete finned tube welding work.
Brazing spiral finned tube
Brazing spiral fin tube is a kind of solder which is filled with a solder with a melting point lower than that of the solder, and then heated the solder welding temperature. When the solder does not melt, the fusion well of solder is wetted and welded, and the solder joint is formed by spreading out the contact point of the solder piece, so as to complete the welding of spiral fin tube.
