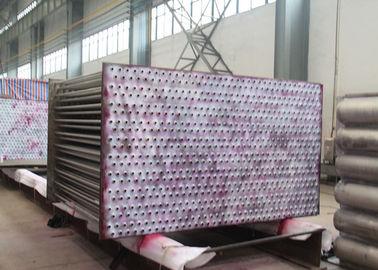

Customized Design Air Preheater In Boiler ASME / ISO Certification Tubular

Customized Design Air Preheater In Boiler ASME / ISO Certification Tubular

MOQ: 1 Set
Price: Negociable
Standard Packaging: Metal Belt
Delivery Period: 30 days after deposit
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 Tons per Month
Detail Information
Place of Origin
Jiangsu , China
Brand Name
HDB
Certification
ISO9001,ASME,Grade A,SGS,EN
Model Number
Air Preheater
Condition:
New
Type:
Pressure Parts
Style:
Horizontal And Vertical
Range Of Applications:
Industrial/Power Station
Material:
Carbon Steel , Stainless Steel
Application:
Power Station
Surface Treatment:
Paint
High Light:

air preheater for boiler

,

air preheater in thermal power plant

Product Description





Customized design Air Preheater In Boiler ASME / ISO Certification Tubular







Product Description


Counted on our professional knowledge, we cater to the needs from customers in renovation and modernization of their exsiting boilers. We have undertaken boiler air preheater and economzier replacement service for many years.



The purpose of the air preheater is to recover the heat from the flue gas(exhaust gases) from the boiler to improve boiler efficiency. Incidentally the gases are sent to the chimney or stack at lowered temperature so that the design of the ducting and the stack becomes simplified. Also it controls the temperature of gases coming out of the stack.



Customized Design Air Preheater In Boiler ASME / ISO Certification Tubular 0



Air pre-heater is a device used to improve the heat exchange performance of the boiler and reduce energy consumption. It refers to the flue gas in the tail flue of the boiler which passes through the internal heat sink and preheats the air before entering the boiler to the heating surface with a certain temperature.Air preheater is generally divided into three types: plate type, rotary type and pipe type.The working principle of air preheater is introduced by taking rotary type as an example.A large number of unburned combustibles may deposit on the heat transfer elements and the air preheater may catch fire.The analysis of brake drop and air leakage control are also introduced in detail.




Different types


For the use in Steam Generators (boilers)in Thermal power stations of Utility power stations, there are two types of design of the Airpreheaters. One is a tubular type built into the boiler outlet Flue_gas ducting and another one is of the regenerative type known as Ljungstrom (named after the name of inventor) Regenerative Air Pre Heater(RAPH),a rotating type. This may be horizontal (now very common in power generation utilities) or vertical.





Functions


1. Improve and strengthen combustion
The air after the waste heat enters the furnace, accelerates the fuel drying, ignition and combustion process, ensures the stable combustion in the boiler, and improves the combustion efficiency.
2. Strengthen heat transfer
As the combustion in the furnace has been improved and strengthened, and the temperature of hot air entering the furnace has been increased, the average temperature level in the furnace has also been increased, so as to strengthen the radiation heat transfer in the furnace.
3. Reduce the loss in the furnace, reduce the smoke discharge temperature, and improve the boiler's thermal efficiency
Because the combustion in the furnace is stable and the radiation heat exchange is strengthened, the chemical incomplete combustion loss can be reduced.On the other hand, the air preheater makes use of the waste heat of flue gas to further reduce the loss of smoke exhaust, so as to improve the boiler's thermal efficiency.According to experience, when the air preheater in rise by 1.5 ℃, exhaust temperature can reduce 1 ℃. After installation of air preheater in boiler flue, if we can put the air heat 150-160 ℃, can reduce exhaust temperature 110-120 ℃, the boiler thermal efficiency can be increased by 7% - 7.5%.You can save 11 to 12 percent on fuel.
4, hot air can be used as fuel desiccant
For laminar combustion furnace, hot air can be used as fuel with high moisture and ash content. For power plant boiler, hot air is an important desiccant and coal powder conveying medium in the fat and powder system.



Customized Design Air Preheater In Boiler ASME / ISO Certification Tubular 1





Parameter


Name Thermal efficiency improving coal fired industrial steam boiler combustion APH air preheater
Material Carbon steel or equivalent
Structure vertical
Tubes enameled seam or seamless tubes
Tube OD as required
Enamel thickness 0.34+/-0.06mm
Size Customzied design





Product advantages


1. High corrosion resistance property;



2. Small covering area;



3. Pipe and tube plate in every link between separated, the heated bilges cold heat distortion is not bound to avoid stress destruction;



4. Single pipe, tube single or parts of equipment failure does not affect the heat normal operation, two fluid were heat tube, can go outside fin








Certifications


80 Ton Gas Boiler Spare Parts , Tubular Steam Air Preheater For Boiler





Company Information


Fabrication area of 200,000 square meters

150 Engineers

600 Coded welders

60 Licensed Inspectors (including NDT level-lll instructors)

Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)

ISO 90001:2008 Quality System

ASME Certificate of Utility Boiler

ASME‘S’ , ‘U’ and NB stamp authorization



Customized Design Air Preheater In Boiler ASME / ISO Certification Tubular 3
