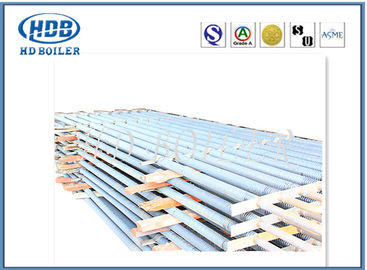

Durable Carbon Steel Boiler Fin Tube For Power Plant Economizer Heat Exchanger

Durable Carbon Steel Boiler Fin Tube For Power Plant Economizer Heat Exchanger

Durable Carbon Steel Boiler Fin Tube For Power Plant Economizer Heat Exchanger
Durable Carbon Steel Boiler Fin Tube For Power Plant Economizer Heat Exchanger
Durable Carbon Steel Boiler Fin Tube For Power Plant Economizer Heat Exchanger
Product Details:
Place of Origin: ZhangJiagang , Jiangsu , China
Brand Name: HD BOILER
Certification: ISO9001 , SGS , ASME , EN , TUV
Model Number: Spiral Fin Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Sets 10tons
Price: Negotiable
Packaging Details: Iron Frame Packing
Delivery Time: 50-100 days
Payment Terms: L/C, , T/T, , Western Union
Supply Ability: 500 Tons Per Month
Contact Now
Detailed Product Description
Application: Power Plant Boiler Pressure: High Pressure
Range Of Applications: Power Station , Industrial Specification: Customized
Surface Treat: Painted Size: Customized
Function: Heat Exchanger Material: Carbon Steel / Stainless Steel
High Light:

spiral fin tube

,

heat exchanger fin tube




Durable Carbon Steel Boiler Fin Tube For Power Plant Economizer Heat Exchanger

Product Description


H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer, which has high efficiency,little resistance,less wear and light weight.


Product
H-fin Tube
Base Pipe
Welded or Seamless
Material
carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys.
Application
Economizer, Evaporator, H uperheater, H air heater and etc.


Fin tubes have played an important part in power plant boilers .
Fin Tube,Extruded Fin tube,Welding Fin tube,L/LH Type Fin Tube,H Type Fin tube with Material A179/Alu1060,stainless steel,copper,copper nickel


Technical parametersThe high degree of fin 0-16mm(or outside diameter of fin φ25-φ75);
Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
Single metal rolling finning tubePure aluminum 1060 or aluminum alloy 6063,6061.
Outside diameter Shall be less than 40mm
Double metal rolling finning tubeTube-based protection from the outer layer of aluminum
tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless
steel tube and copper tube can also be used, as well as titanium alloy tube
PackageThe aluminum finned tubes are well packed in plastic film in the inner and steel fram
in the outer







Durable Carbon Steel Boiler Fin Tube For Power Plant Economizer Heat Exchanger 0


Specifications

In order to ensure that these units met customer expectations, a series of in-process testing was performed in accordance with Fin Tube Products' quality control system. In addition, the products' quality was also verified by an onsite independent testing company.

Base Tube Material
Stainless Steel, Carbon Steel, Alloy Steel, Copper Alloy,Aluminum ,SA179
Fin Material
Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
Standard
ASME SA213/ASTM; ASME EA 106, ASME SA178, ASTM B1111
Fin depth
0.5-3mm
Base pipe O.D
12.7-18mm
Fins per inch
8-20Nos (as customer's request)
Test Requirement
Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement.
Application
Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc.


 Durable Carbon Steel Boiler Fin Tube For Power Plant Economizer Heat Exchanger 1
Company Information


HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
