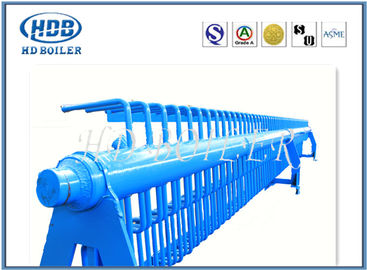

OEM Design Steel Boiler Manifold Headers For Carbon Steel Fired Boiler Parts

OEM Design Steel Boiler Manifold Headers For Carbon Steel Fired Boiler Parts

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden Case
Delivery Period: 35 working days
Payment Method: L/C, T/T
Supply Capacity: 500ton/month
Detail Information
Place of Origin
Jiangsu , China
Brand Name
HDB
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
Boiler Manifold Header
Condition:
New
Dimension:
Depends
Type:
Ultra Super Critical
Material:
15CrMoG / 12Cr1MoVG
OEM:
Yes
Color:
Red / Blue / White
High Light:

boiler header manifolds

,

headers and manifolds

Product Description



Carbon Steel Boiler Fired Boiler Parts For Power Plant Steel Boiler Manifold Headers


Product Description
Steam distribution headers are fabricated out of carbon steel or alloy steel seamless tubes. Customized or tailor made items are offered. Headers, after fabrication, are stress relieved to make the Steam distribution headers free from stresses. They are big pipe headers that transfer water from the downcomers to the risers through a combustion zone where the water gets partially heated to steam from the heat of fuel combustion.

The headers of boilers include water-cooling hinders of boilers proper, economizer hinders, superheater hinders, etc. They function for gathering, mixing and redistribution in boiler systems. In structure, they include end cover hinders or necking hinders.

1 Headers form an important part of all types of boilers.
2 Steam from the generating tubes is collected in headers which are therefore always under pressure.
3 This pressure may vary from 300 psi to 2000 psi. Since headers are always under pressure, the utmost care is taken by us while fabricating them.
4 Depending on the generating capacity of the boiler the header sizes fabricated by us vary from 100 mm to 600 mm NB. The stubs of various sizes are very carefully welded to the main body of the header to provide the desired openings from the header.



Operation



In bringing a boiler on the line with other boilers on a header system,certain precautionss are necessary to avoid water hammer and excessive temperature gradients in the piping. Adequate drainage and warming of the piping will eliminate the risk of water hammer. The judicious use of bypass valves around main header valves will avoid steep temperature gradients. Header drains should be operated. The steam line from the boiler to the header should be brought up to temperature by operating bypass and drain valves. When up to temperature and line pressure, the header valve may be opened wide and the bypass closed.



OEM Design Steel Boiler Manifold Headers For Carbon Steel Fired Boiler Parts 0



Details



The pressures and temperatures that headers have to withstand depend on the component to which they are connected. A header connected to an economizer or to water wall panels is subject to less severe requirements on the material than a header connected to superheaters or reheaters.


Depending on the temperature and pressure of headers, Vallourec supplies tubes in carbon steel to high-alloy ferritic steels such as T/P91 or T/P92, with sizes ranging from 88.9 mm to 406.4 mm.



Features



The pressures and temperatures that headers have to withstand depend on the component to which they are connected. A header connected to an economizer or to water wall panels is subject to less severe requirements on the material than a header connected to superheaters or reheaters.



Depending on the temperature and pressure of headers, Vallourec supplies tubes in carbon steel to high-alloy ferritic steels such as T/P91 or T/P92, with sizes ranging from 88.9 mm to 406.4 mm.



OEM Design Steel Boiler Manifold Headers For Carbon Steel Fired Boiler Parts 1



Classification

Enamelled Corrugated Sheet Baskets are a compact arrangement of profiled metal sheets placed in the Air Preheater rotor in two or more layers and plays the most important role in the process of heat recovery.

The bottom layer, or the cold end layer, is where the air enters and the flue gases are discharged, and is therefore, subjected to severe corrosion due to acid dew point. The Material of Construction and the Profile design of the Heating Elements depends on the operating conditions, quality and type of fuel, etc.

Parameters

Diameter(OD)

¢76mm~¢914mm

Diameter(OD)

23000mm

Temperature(℃)

300~1500



Application

Steam distribution headers are fabricated out of carbon steel or alloy steel seamless tubes. Customized or tailor made items are offered. Headers, after fabrication, are stress relieved to make the Steam distribution headers free from stresses. They are big pipe headers that transfer water from the downcomers to the risers through a combustion zone where the water gets partially heated to steam from the heat of fuel combustion.



Factory Workshop

OEM Design Steel Boiler Manifold Headers For Carbon Steel Fired Boiler Parts 2
