Anti Wind Pressure Induction Steam Drum For Power Station CFB Type Boiler
Product Details
| Style: | Horizontal And Vertical | Usage: | Industry/Power Station |
|---|---|---|---|
| Condition: | New | Output: | Hot Water/Steam |
| Weight: | Depends | Pressure: | High/Low Pressure |
| Fuel: | Coal/Gas/Oil-fired | Dimension(l*w*h): | Customization |
| Color: | Customer's Requirement | Keywords: | Boiler Drum |
| Highlight |
steam drum in boiler,boiler mud drum |
||
Product Description

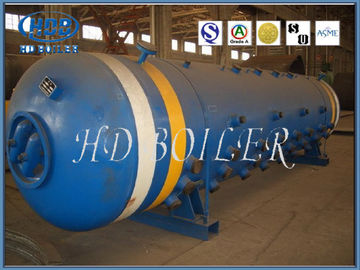

Anti Wind Pressure Induction Steam Drum For Power Station CFB Boiler
A steam drum is a standard feature of a water-tube boiler. It is a reservoir of water/steam at the top end of the water tubes. The drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture. The difference in densities between hot and cold water helps in the accumulation of the "hotter"-water/and saturated-steam into the steam-drum.
Steam-water separation details
Primary steam-water separation removes nearly all the steam from the water so that very little steam is recirculated from the drum bottom towards the heated tubes through the outlet connection (downcomer).
At secondary separation, steam is passed through a secondary stage of separators or scrubber elements (usually closely spaced corrugated parallel plates) for final water droplet removal. Steam is then exhausted through various ports.
HD Boiler offers a best in class facility, including
· Fabrication area of 200,000 square meters
· 150 Engineers
· 600 Coded welders
· 60 Licensed Inspectors (including NDT level-lll instructors)
· Grade-A Licenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
· ISO 90001:2008 Quality System
· ASME Certificate of Utility Boiler
· ASME‘S’ , ‘U’ and NB stamp authorization
Company Introduction
Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a
professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all
kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters,
headers, spiral fin tubes, H-fin tubes, heat pipes etc.
We are the qualified supplier for the following large boiler manufacturers in China:
- Shanghai Boiler Works Ltd.
- Hang Zhou Boiler Group Co. Ltd.
- Harbin Boiler Co., Ltd.
- Dong Fang Boiler Group Co., Ltd.
- Wuxi Huaguang Industrial Boiler Co., Ltd.
- Jiangxi Jianglian Energy & Environment Co., Ltd.
- Dalian Boiler Works
- Suzhou Hailu Heavy Industry Co., Ltd.
