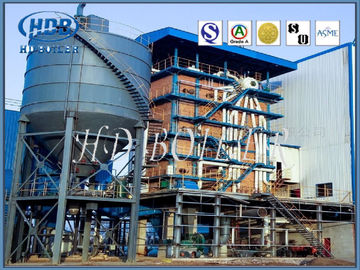

Customized Design CFB Boiler , High Pressure Boiler For Power Station

Customized Design CFB Boiler , High Pressure Boiler For Power Station

    • Customized Design CFB Boiler , High Pressure Boiler For Power Station
    • Customized Design CFB Boiler , High Pressure Boiler For Power Station
    • Customized Design CFB Boiler , High Pressure Boiler For Power Station
  • Customized Design CFB Boiler , High Pressure Boiler For Power Station

    Product Details:

    Place of Origin: Zhangjiagang,China
    Brand Name: HD Boiler
    Certification: ISO9001,ASME,Grade A,SGS,EN,TUV
    Model Number: CFB Boiler

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 Sets / Year
    Contact Now
    Detailed Product Description
    Condition: New Structure: Fluidized Bed
    Ship Port: Shanghai Water Circulation: Natural Circulation
    Specification: Customized Pressure: High Pressure
    Color: Customized Place Style: Vertical



    Customized design Circulating Fluidized Bed Combustion Boiler For Power Station


    Company Introduction

    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.


    Structure Features

    • Natural circulation water-tube boiler single boiler barrel,an n-shaped structure.
    • The hearth is membrane water wall hanging closed structure

    Adopting the water cooling air chamber and a water cooling cloth wind plate,under the bed of water.

    Separated by high temperature insulation volute cyclone cylinder,outer furnace arrangementSuperheater,economizer,air preheater is arranged in the tail shaft.



    Model Capacity (t/h)



    Steam temperature


    Feed water temperature

    Desulfurization efficiency


    HD-35/3.82-M 35 3.82 450 150 min 82
    HD-35/5.3-M 35 5.3 450 150 min 82
    HD-75/3.82-M 75 3.82 450 150 min 82
    HD-75/5.3-M 75 5.3 485 150 min 82
    HD-75/9.8-M1 75 9.8 540 215 min 82
    HD-130/3.82-M 130 3.82 450 172 min 82
    HD-130/5.3-M 130 5.3 485 172 min 82
    HD-130/9.8-M 130 9.8 540 215 min 82


    Greatest Fuel Flexibility

    • Best overall solution for high moisture fuels.
    • Ability to burn fuels containing mid-level amounts of alkali.

    • Proficient at combusting fuels from the extreme low-end to extreme high-end moisture contents.


    Higher Efficiencies

    • Lowest excess oxygen required for complete combustion.
    • Lowest unburned carbon.


    Highest Allowable Outputs

    • Highest Pressure.
    • Highest Temperature.
    • Steam Flow(up to 1,000,000 PPH)


    Lowest Uncontrolled Emissions of NOx,SO2,CO,VOC’s and PM.



    1.Auxiliary fuel economizer;

    Molecular structure of hydrocarbons by the fuel economizer processing, change, increase the distance between the molecules, the increase in the number of small molecular fuel viscosity decreased, the result of the fuel oil before burning atomization, refined, to improve greatly, spray into the combustion chamber internal are fully under the condition of low oxygen combustion, thus the blast volume of combustion equipment can reduce 15% to 20%, avoid to take away the heat in the flue, flue temperature drop 5 ℃ to 10 ℃.After the fuel of the combustion equipment is processed by energy saver, it can save oil from 4.87% to 6.10% due to the improvement of combustion efficiency. Besides, it can be clearly seen that the flame is bright and dazzling, black smoke disappears, and the furnace is clear and transparent.Completely remove the coking phenomenon of the combustion tip and prevent recoking.The phenomenon of slag accumulation on furnace wall due to insufficient combustion of fuel can be eliminated, and the effect of environmental protection and energy saving can be achieved.The pollution to the air caused by waste gas from combustion equipment is greatly reduced. The harmful components such as carbon monoxide (CO), nitrogen oxides (NOx) and hydrocarbon (HC) are greatly reduced, and the emission of harmful waste gas is reduced by more than 50%.Meanwhile, the dust content in waste gas can be reduced by 30%-40%.Location: between the pump and the combustion chamber and nozzle, the environment temperature should not exceed 360 ℃.

    2.An energy saving device for a condensing gas boiler is installed on the upper wall.

    The exhaust of gas-fired boiler contains up to 18% steam, which contains a large amount of latent heat which is not utilized. The exhaust temperature is high and the obvious heat loss is great.The burning of natural gas still emits nitrogen oxides, small amounts of sulfur dioxide and other pollutants.Reduce fuel consumption is the best way to reduce costs, condensing type gas boiler economizer can be installed directly in the existing boiler flue, recycling of the high temperature flue gas energy, reduce fuel consumption, economic benefit is very obvious, at the same time, the condensation of water vapor absorption nitrogen oxide in flue gas, sulphur dioxide and other pollutants, reduce the pollutant emissions, has the important significance of environmental protection.

    3.Tube grid adopts condensing waste heat recovery boiler technology;

    Traditional boiler, exhaust smoke temperature is in commonly 160 ~ 160 ℃, the flue gas water vapor is still in the overheated state, it is impossible to condense into liquid water and release latent heat of vaporization.It is well known that the boiler thermal efficiency is calculated by the low calorific value of fuel without considering the latent heat loss of vaporization in the high calorific value of fuel.Therefore, the thermal efficiency of traditional boiler can only reach 87% ~ 91%.And condensing waste heat recovery boiler, it reduce the exhaust temperature to 50 ~ 70 ℃, full recovery of sensible heat and water vapor condensation latent heat of the flue gas, increase the thermal efficiency;The condensed water can also be recycled.

    4.The tail of the boiler adopts heat pipe waste heat recovery technology.

    Waste heat is the energy that is not utilized in the energy utilization equipment under certain economic and technological conditions, namely the surplus and waste energy.It includes waste heat of high temperature waste gas, waste heat of cooling medium, waste water waste heat of waste gas, waste heat of high temperature products and slag, waste heat of chemical reaction, waste heat of combustible waste gas liquid and waste waste and pressure of high pressure fluid.According to the survey, the total waste heat resources of various industries account for about 17%~67% of their total fuel consumption, and the recycled waste heat resources are about 58% of the total waste heat resources.

    Customized Design CFB Boiler , High Pressure Boiler For Power Station
