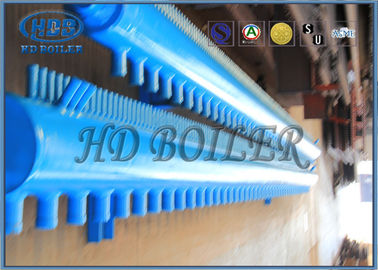

Heating Elements Boiler Manifold Headers In Horizontal Style High Efficient

SGS Standard Industrial Horizontal Boiler Manifold Headers with High Efficiency

Product Introduction

Boiler Manifold Header is a kind of tube for mixing working substance of boiler and ensuring uniform heating of working substance.Industrial boiler furnace wall is usually composed of rows and rows of tubes (water wall) together, but boiler huge volume, complicated structure, cannot guarantee that all the working medium in the pipe of heat absorption capacity is the same, different parts of heat absorption differs a lot, install header can let each pipe working medium inside converge here, the redistribution to the next level in the tube, so that we can reduce the thermal deviation, make the working medium heat, cooling flow, boiler, the boiler thermal efficiency are optimized to improve;In addition, the size, quantity and layout of the pipes in the upper, middle and lower parts of the boiler are different.

Installation and Welding of Pipe Joints

Generally, there are two kinds of pipe joints on the header barrel body. One is the large-diameter pipe joints with a diameter of more than 101.6mm, such as the hand-hole pipe joints and seats opened near the header end cover and ring joints.The other is a small diameter pipe joint with a diameter of less than 101.6mm, which is used for combination welding of the header and the tube screen of economizer, superheater and reheater.A large number of closely spaced small diameter pipe joints are welded on the whole length of the header barrel, some are short pipe joints with a length of less than 300mm, and some are long pipe joints with a length of 300 ~ 1700mm bent into a certain shape.

Details​

• The pressures and temperatures that headers have to withstand depend on the component to which they are connected. A header connected to an economizer or to water wall panels is subject to less severe requirements on the material than a header connected to superheaters or reheaters.
• Depending on the temperature and pressure of headers, Vallourec supplies tubes in carbon steel to high-alloy ferritic steels such as T/P91 or T/P92, with sizes ranging from 88.9 mm to 406.4 mm.

Attention

If there exists straw hat , iron and other sundry in manifold headers, when power plant is running, it is easy to cause boiler stop accidents such as booster.So the header cleanliness must be strictly controlled.

Quality Control

1. Strength calculation report with applied materials information.
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler.
4. Hydraulic test report: ensure the standard working pressure and safety.

Company Information

• Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers.
• Established in early 1985s, has two manufacturing bases, this company covers 400,000 ㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders.
• Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.
