|Place of Origin:||China|
|Brand Name:||HD BOILER|
|Minimum Order Quantity:||1 Set / Sets 10tons|
|Packaging Details:||Seaworthy Packing|
|Delivery Time:||30 Days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||500 Tons per Month|
|Condition:||New||Structure:||Fire / Water Tube|
|Fuel:||Coal/Gas/Coal-fired/Water Heat||Style:||Horizontal And Vertical|
|Manufacturing Level:||A||Surface Treatment:||Painted|
|Specification:||Customized||Range Of Applications:||Industrial / Power Station|
air preheater for boiler,
air preheater in thermal power plant

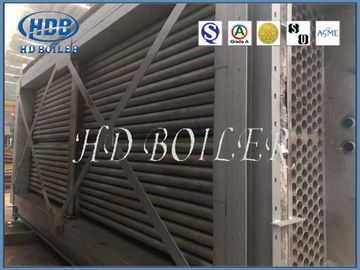

ISO Certification Power Station Plant Boiler Tubular Air Preheater For Heat Exchange
1. A device,which increases the tempurature of air before it supply to the furnance using heat from flue gases passing through chimney.
2. The heat carried with the flue gases coming out of economiser is further utilised for preheating the air before supplying to the combustion chamber.
3. An increase of 20 degree centigrade in the air temp.increases the boiler efficiency by1%.
4. It is a necessary equipment to supply hot air for drying the coal in pulverised fuel systems to facilitate grinding and satisfactory combustion of fuel in the furnace.
1. Improve and strengthen combustionThe air after the waste heat enters the furnace, accelerates the fuel drying, ignition and combustion process, ensures the stable combustion in the boiler, and improves the combustion efficiency.
For laminar combustion furnace, hot air can be used as fuel with high moisture and ash content. For power plant boiler, hot air is an important desiccant and coal powder conveying medium in the fat and powder system.
1. Improved combustion rate and then increases steam generations rate of boiler.
2. Due to higher temperature of air, furnance temperature increases, so low grade coal can be burnt efficiently.
3. Air heated by heat of exhaust gases.It reduces fuel consumptions.Therfore thermal efficiency of boiler increased.
4. Saving in fuel consumption and Increased steam generation capacity.
1. Preheated air increases combustion rate and then increases steam generations of boiler.
2. Due to higher temp. of air,furnace temp.increases,so low grade coal can be burnt efficiently.
3. Air heated by heat of exhaust gases.It reduces fuel consumptions.Therefore thermal efficiency of boiler increased.
An air preheater is installed between economisers and the chimney.It consists of large numberss tubes which arranged in the path flue gases shell.Inlet air is at lower end.Baffles are provided inside air preheater.The soot hopper is provided at the bottom.
1. Hot flue gases enters into tubes from the top of the shell and leaves from to the chinmney.
2. The inlet air at R.Tem. is admitted into the shell with the help of the fan.
3. The air passes upward around the tubes in the opposite direction to the flow of the hot gases.
4. Baffeles increases the total path length of air thus increase heat transfer.
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
