American Standard HD Boiler Membrane Water Wall Panel For Power Station

American Standard HD Boiler Membrane Water Wall Panel For Power Station

American Standard HD Boiler Membrane Water Wall Panel For Power Station
American Standard HD Boiler Membrane Water Wall Panel For Power Station
American Standard HD Boiler Membrane Water Wall Panel For Power Station
Product Details:
Place of Origin: CHINA
Brand Name: HD Boiler
Certification: ISO9001 ASME SGS EN
Model Number: HDB041008
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Packaging With Iron Frame
Delivery Time: Within 60 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500Ton/month
Contact Now
Detailed Product Description
Material: Color Steel Sheet,steel Usage: Construction Insulation
Advantage: Easy Install Color: Customized
Name: Membrane Water Wall Panel Function: Wall Decoration And Heat Insulation
Certification: ISO900/CE/SGS,ASTM,ISO9001 Density: Customized
High Light:

boiler water wall panels

,

boiler water wall tubes







American standard HD Boiler membrane water wall panel for power station







Product Introduction




The water wall was originally designed not to be heated but to cool the furnace against high temperatures.Later, because of its good heat exchange function, it gradually replaced the drum as the main heating part of the boiler.



Full name of "water wall tube", the old "water wall", also known as "rising pipe".Usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.It is the main type of evaporative heating surface of modern boilers and the basic component of water circulation loop of boilers.It has the function of cooling and protecting furnace wall.



An evaporative heating surface arranged on the inner wall of a boiler furnace and composed of many parallel pipes.The function of the water wall is to absorb the radiant heat of the high temperature flame or flue gas in the furnace chamber, generate steam or hot water in the pipe, and reduce the temperature of the furnace wall to protect the furnace wall.In a large capacity boiler, the flame temperature in the furnace is very high, and the intensity of heat radiation is very large.40 to 50 percent or more of the heat in the boiler is absorbed by the water wall.Except for a few small capacity boilers, modern water tube boilers use water cooling wall as the main evaporative heating surface.





Parameter




Name Membrane water panel
Material Carbon steel,Alloy,Stainless steel
Tube size Φ38 - 76 mm, or as required
Standard ISO , ASME
Model Studded
Application Istallable around the boiler combustion chamber






Product details


Water wall panels with pins usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.It is the main type of evaporating heating surface of all kinds of modern boilers and the basic component of boiler water circulation loop.Because of both cooling and protection of the furnace wall, so the name.

The water wall was originally designed not to be heated, but to cool the furnace from high temperature damage.Later, because of its good heat exchange function, it gradually replaced the steam drum as the main heating part of the boiler.



The evaporative heating surface, which is laid on the inner wall of boiler chamber and consists of many parallel pipes.The function of water wall is to absorb the radiant heat of high temperature flame or flue gas in the furnace chamber, generate steam or hot water in the pipe, and reduce the temperature of the furnace wall to protect the furnace wall.In a large capacity boiler, the flame temperature in the furnace is very high, the intensity of heat radiation is very large.Forty to fifty percent or more of the heat in the boiler is absorbed by the water wall.Except for a few small capacity boilers, modern water tube boilers take water cooling wall as the main heating surface of evaporation.

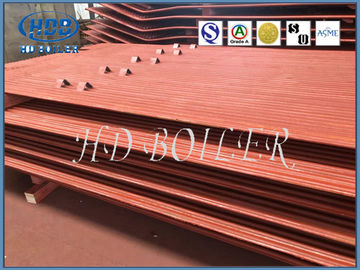

American Standard HD Boiler Membrane Water Wall Panel For Power Station 0





Features




1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safet







Adavantages


1.ensure the sealing of furnace wall and reduce air leakage in combustion chamber.

2.realize full water cooling in the combustion chamber, which is conducive to preventing coking under the condition of intensified combustion.

3.low heat storage capacity, fast heating and cooling of the combustion chamber, which can shorten the cooling time of the boiler starting and stopping.

4.it is suitable to use tube-laying furnace wall, which greatly reduces the load of boiler frame and facilitates suspension.

5.compared with the light pipe, the heat absorption capacity of the pipe is improved.

6.improve the pre-assembly degree of boiler components, facilitate and reduce the installation workload.





Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
