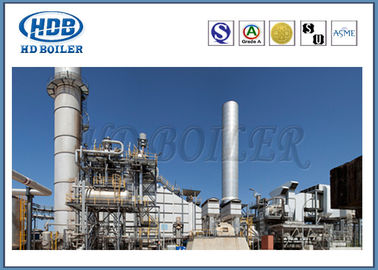

Horizontal Style HRSG Heat Recovery Steam Generator With High Durability
Product Details
| Type: | Natural Circulation,SEAMLESS,Heavy Duty | Usage: | Industrial,Industry And Power Station,improve The Production Efficiency,Heating The Raw Material |
|---|---|---|---|
| Style: | Horizontal | Dimension(l*w*h): | Customized |
| Output: | Steam | Product Name: | HRSG Heat Recovery Steam Generator |
| Highlight |
waste heat recovery boiler,industrial boilers and heat recovery steam generators |
||
Product Description
Energy Saving High Pressure Industrial HRSG Heat Recovery Steam Generator
General Introduction
- Along with sustainable development,recycling economy,energy conservation and low-carbon economy ideas put forward one by one.our cogeneration industry has experienced from scratch,small to large development process.
- Cogeneration production process is converted waste heat to electrical energy technology.Cogeneration not only energy,as well as environmentally.Important cogeneration equipment room is HRSG.
Specifications
| Condition: | New | Structure: | WHRS Type |
|---|---|---|---|
| Fuel: | Biological | Pressure: | Low/High Pressure |
| Range Of Applications: | Industrial | Specification: | Customized |
| Manufacturing Level: | A | Surface Treatment: | Painted |
| Output: | Steam | Water Circulation: | Natural Circulation |
Technical Features
Kiln (AQC) HRSG Features
1, Modular assembly structure, reliable sealing expansion
2, Adopt wear fin tubes, boiler pressure parts life assurance
3, Unique flash technology, the boiler outlet temperature is reduced to below 90ºC
Kiln (SP) HRSG Features
1, Heating surface tubes and headers with privildged connection structure, reducing mechanical shock and vibration
2, By mechanical vibration cleaning mode, continous cleaning mode little impact on system operation
3, Set sealed scraper gray machine, greatly reducing dust tail.
Parameter
| Cement production line capacity t/d | 1000 | 2500 | 5000 | 10000 | |
| Boiler inlet flow Nm3/h | Kiln(front) | 60000 | 88000 | 243000 | 472000 |
| Kiln(tail) | 76000 | 170000 | 328000 | 612000 | |
| Boiler inlet gas temperature℃ | Kiln(front) | 370 | 360 | 380 | 390 |
| Kiln(tail) | 360 | 320~360 | 330 | 330 | |
| Rated evaporation t/h | Kiln(front) | 5.8 | 7.25 | 24 | 50 |
| Kiln(tail) | 7.5 | 10~15.8 | 20~24.6 | 35.5 | |
| Rated steam pressure Mpa | Kiln(front) | 1.25 | 1.25 | 1.25 | 1.25 |
| Kiln(tail) | 1.25 | 1.25 | 1.25 | 1.25 | |
| Rated steam temperature℃ | Kiln(front) | 340 | 330 | 350 | 360 |
| Kiln(tail) | 340 | 300~340 | 310 | 310 | |
| Boiler structure | Kiln(front) | Vertical | Vertical | Vertical | Vertical |
| Kiln(tail) | Vertical | Vertical and Horizontal | Vertical and Horizontal | Vertical | |
Packing
Our products have standard export package, fumigated wood box, U-steel, steel frame reach to sea transportation requirement.
Shipping
We have our own professional shipping company, make sure the product arrived your destination safely and as soon as possible.
Company Introduction
Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port.
