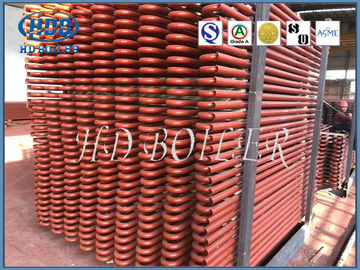

Natural Circulation Industrial Thermal Recovery , Crude Oil Thermal Recovery

Natural Circulation Industrial Thermal Recovery , Crude Oil Thermal Recovery

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Seaworthy packing
Delivery Period: 50 days
Payment Method: T/T, L/C, Western Union, D/P, MoneyGram
Supply Capacity: 500 sets per year
Detail Information
Place of Origin
CHINA
Brand Name
HD Boiler
Certification
ISO9001,ASME,Grade A,SGS,EN
Model Number
Thermal Oil Boiler
Usage:
Industrial,Crude Oil Thermal Recovery
Type:
Natural Circulation,Once Through
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Output:
Steam,hot Conduction Oil
Application:
Industrial Production
Material:
Special Boiler Steel Plate
Highlight:

heating oil boiler

,

hot oil boiler system

Product Description



Natural Circulation Industrial Thermal Recovery for Crude Oil Thermal Recovery

Description



Flame and high temperature smoke produced by complete burning of fuel (light diesel oil,heavy oil,residual oil,natural gas,liquefied petroleum gas,city gas etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.



Details



Fuel: Gas , Oil Fired Pressure: Low Pressure
Place Style: Vertical Media: Organic Heat Transfer Material
Usage: Industrial Specification: Customized
Surface Treatment: Painted Port: Shanghai






Parameter





Model

YYL(W)

350

Y(Q)

600

Y(Q)

900

Y(Q)

1200

Y(Q)

1500

Y(Q)

1800

Y(Q)

2300

Y(Q)

2900

Y(Q)

3500

Y(Q)

Rated power(kw) 350 600 900 1200 1500 1800 2300 2900 3500
Heat supply×104(kCal/h) 30 50 75 100 160 150 200 250 300
Thermal efficiency(%) ≥88 ≥88 ≥88 ≥88 ≥90 ≥90 ≥90 ≥90 ≥90
Design pressure(MPa) 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Maximum working temperature(℃) 320 320 320 320 320 320 320 320 320
Medium circulation rate(m3/h) 40 58 100 100 100 160 160 200 200
The furnace medium capacity(m3) 0.4 0.6 0.6 0.8 1.2 2.1 2.6 3.5 7.8
Competent diameter(DN) 100 100 125 125 125 150 150 200 200
Capacity(kw) 14.5 18 31 37.5 49.5 57.5 61.5 75 75
Applicable fuel Oil,Gas
Fuel consumption Kg/h(oil) 34 56 84 111 141 163 217 273 326

Dimensions

(¢·H)m

Vertical oil furnace 1.3×2.5 2×3.5 2.1×3.5 2.2×3.5 2.2×4 2.2×4.4 2.7×5.1 2.8×6.5 3.2×6.7

Circulation

pump

Model WRY 80-50-180

100-

65-190

100-

65-230

100-

65-240

100-

65-257

125-

80-250

125-

80-250

125-

100-250

125-100-250
Flow(m3/h) 40 60 100 100 100 160 160 200 200
Lift(m) 40 38 55 70 80 60 60 60 60
Power(kw) 7.5 11 22 30 37 45 45 55 55






Features


1. Energy efficient
2. Safe and reliable
3. Easy to install
4. Fuel applicable
5. Application industry



Company Information



Natural Circulation Industrial Thermal Recovery , Crude Oil Thermal Recovery 0

Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization

Natural Circulation Industrial Thermal Recovery , Crude Oil Thermal Recovery 1
