MOQ: | 1Set |
Price: | Negotiable |
Standard Packaging: | Seaworthy Packing |
Delivery Period: | 30 Days |
Payment Method: | L/C, T/T, Western Union, D/P, MoneyGram |
Supply Capacity: | 500 Tons/Month |

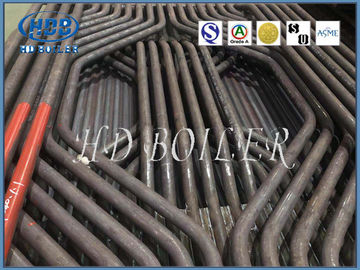

High Efficient Membrane Power Plant Boiler Water Wall Panels For Heat Exchange,ISO/ASME Certification
Product Introduce
Full name of "water wall pipe", the old name of "water wall", also known as "rising pipe".Usually laid vertically on the inner wall of the furnace wall, it is mainly used to absorb the radiant heat emitted by the flame and high-temperature flue gas in the furnace.It is the main type of evaporating heating surface of all kinds of modern boilers and the basic component of boiler water circulation loop.Because of both cooling and protection of the furnace wall, so the name.
The water wall was originally designed not to be heated, but to cool the furnace from high temperature damage.Later, because of its good heat exchange function, it gradually replaced the steam drum as the main heating part of the boiler.
The evaporative heating surface, which is laid on the inner wall of boiler chamber and consists of many parallel pipes.The function of water wall is to absorb the radiant heat of high temperature flame or flue gas in the furnace chamber, generate steam or hot water in the pipe, and reduce the temperature of the furnace wall to protect the furnace wall.In a large capacity boiler, the flame temperature in the furnace is very high, the intensity of heat radiation is very large.Forty to fifty percent or more of the heat in the boiler is absorbed by the water wall.Except for a few small capacity boilers, modern water tube boilers take water cooling wall as the main heating surface of evaporation.
Manufacturing
HDB manufacure use screen welding method of membrane type wall light pipe and flat steel structure the welding process of membrane type wall light pipe and flat steel structure is mainly as follows:
1. Automatic fusion of extremely active gas shielded welding
The mixed group of protective gas is divided into (Ar)85% ~ 90%+(CO2)15% ~ 10%. In the equipment, the pipe and flat steel are pressed by the upper and lower rollers and transported forward. Multiple welding guns can be used for simultaneous welding at the top and bottom.
2. Wire submerged arc welding
This equipment belongs to the fixed frame welding workstation, the machine tool has the function of steel pipe and flat steel positioning, clamping, feeding, welding and automatic recovery of flux, etc. Generally, it is equipped with 4 or 8 welding guns to complete the welding of 4 or 8 fillet welds at the same time.This technique is simple to operate and has no high requirements on the surface of pipes and flat steel. However, it can only be welded on one side in a horizontal position and cannot be welded on both sides at the same time.
3. Semi-automatic gas arc welding
When welding with this method, the pipe screen shall be firstly positioned and welded, and then welded by manual operation of the welding gun.This welding method can not be used for simultaneous welding of top and bottom, and it is difficult to realize continuous and uniform welding of multiple welding guns, so it is difficult to control welding deformation.When using semi-automatic gas arc welding for pipe screen welding, attention must be paid to reasonable selection of welding sequence to minimize welding deformation.The fillet welds of the flat steel sealed at the local opening of the pipe screen and the fillet welds of the special-shaped pipe screen such as the cold ash bucket and burner nozzle are usually welded by semi-automatic fusion polar gas shielded welding.
The automatic welding production line of membrane wall tube screen melting extremely active gas protection is the world's most advanced membrane wall tube screen manufacturing technology and equipment. Automatic control can be achieved from pipe feeding, flat steel uncoiling, finishing, leveling, welding and so on.The upper and lower welding guns can be welded at the same time, the welding deformation is small, and there is almost no need to correct after welding, so that the geometric size of the pipe screen is accurate, the quality of the fillet weld is good, the forming is beautiful, the welding speed is fast, and the production efficiency is high.
Parameter
Name | Membrane water panel |
Material | Carbon steel,Alloy,Stainless steel |
Tube size | Φ38 - 76 mm, or as required |
Standard | ISO , ASME |
Model | Studded |
Application | Istallable around the boiler combustion chamber |
Advantages
(1) the protective effect of membrane water cooling wall on the furnace wall is the most complete, so the furnace wall only needs insulation materials, rather than refractory materials, so that the thickness and weight of the furnace wall are greatly reduced, simplify the structure of the furnace wall, reduce the total weight of the boiler.
(2) membrane water wall also has good air tightness, can adapt to the requirements of positive pressure combustion on the boiler, not easy to slag formation, less air leakage, reduce the heat loss of smoke exhaust, improve the boiler thermal efficiency.
(3) it can be welded into components by the manufacturer for quick and convenient installation.
(4) the use of membrane wall structure of the boiler, simple maintenance, boiler service life can be greatly improved.
Features
1. Strength calculation report with applied materials information;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler;
4. Hydraulic test report: ensure the standard working pressure and safety
Certifications
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
