Safety L Boiler Economizer High Efficient Power Plant Boiler Economiser HDB

Safety L Boiler Economizer High Efficient Power Plant Boiler Economiser HDB

    • Safety L Boiler Economizer High Efficient Power Plant Boiler Economiser HDB
    • Safety L Boiler Economizer High Efficient Power Plant Boiler Economiser HDB
    • Safety L Boiler Economizer High Efficient Power Plant Boiler Economiser HDB
    • Safety L Boiler Economizer High Efficient Power Plant Boiler Economiser HDB
  • Safety L Boiler Economizer High Efficient Power Plant Boiler Economiser HDB

    Product Details:

    Place of Origin: China
    Brand Name: HD BOILER
    Certification: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Economizer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set / Sets 10tons
    Price: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 500 Tons per month
    Contact Now
    Detailed Product Description
    Material: Carbon Steel Range Of Applications: Power Station, Life, Industrial
    Type: Natural Circulation/Once Through Certificate: ISO,ASME
    Output: Hot Water/Steam Fuel: Coal/Gas/Oil-fired, Water Heat







    Safety L Boiler Economizer High Efficient Power Plant Boiler Economiser HDB











    Introduction


    Economizer

    • Description :Economizer is a mechanical device intended to reduce energy consumption, or to perform another useful function like preheating a fluid. The economizer is used for other purposes as well boiler, powerplant, and heating, ventilating, and air-conditionin(HVAC) uses are discussed in this article. In simple terms, an economizer is a heat exchanger.



    • Features :
      • Recovering heat from the waste gas.
      • Increase thermal efficiency and reduce fuel consumption
      • Heat Pipes have high heat transfer efficiency due to two modes of heat transfer in the tube – conduction and convection
      • Simplicity in installation
      • Compact design allows more space for other equipment in crowded mechanical rooms
      • Require no external power for operation



    Specifications




    Description Boiler economizer
    Material Alloy steel, Carbon steel, SA210C ,SA213T22, etc.
    Material standard ASTM, EN or ISO etc.
    Dimension Customization
    Weight

    Min: 10 ton

    Max.:1000 ton

    Smelting Process: EF+LF + VD
    Process Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
    UT standard ASTM A388 or EN10228, etc



    Technical specifications




    Material Structure

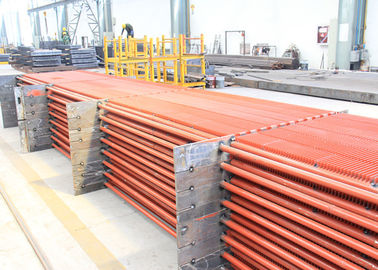

    Consists of a serious of spiral fin tubes, the headers of inlet and outlet, bend, frame and other auxiliaries.

    Structure Arrangement
    In line / staggered arrangement.



    Function


    (1) The economizer is a steam generation system as like a boiler. when the exhaust gas discharge from the engine cylinder through the exhaust valve it goes to the boiler for generate steam by heating of water.



    (2) After those gas it goes through the economizer the remaining exhaust gas temperature is heated the water in economiser. it help to generate steam, and it is improving the efficiency and save the fuel consumption



    (3) An economizer uses the waste heat from the boiler exhaust, that would otherwise be lost to atmosphere to (in most cases) preheat the feed water into the boiler.This improves the boiler efficiency and reduces fuel costs.



    Safety L Boiler Economizer High Efficient Power Plant Boiler Economiser HDB



    Variety


    Utility Boiler Economizer


    1 HDB produces economizers for utility boilers, which includes boilers fueled by coal, wood, oil, or other solid fuels to produce electricty from the boiler's high pressure steam.
    2 These economizers are usually located in the back pass of the boiler and oriented with the tubes running horizontally.The boiler feedwater runs through the economizer circuits in the opposite direction of the gas flow (called counterflow).
    3 Bare tubes are typically utilized in order to minimize ash fouling, but some boiler OEM's design their economizers with finned tubes, either spiral or long finned.
    4 HDB can produce economizer elements with either bare, spiral finned, or long finned tubes, and if you prefer, re-design your unit to one of the other tube-types. HDB can also fabricate replacement headers for all utility boiler economizers.



    Package Boiler Economizer


    1 HDB has unique manufacturing capabilities that the Optimus engineers take full advantage of when designing sulfuric acid plant economizers and superheaters.
    2 Often this allows the Optimus units to be configured for higher heat transfer efficiencies which results in a reduced surface area requirement and, consequently, a lower-priced product.
    3 HDB utilizes its on-site capabilities to fin and bend the tubes, machine and fabricate the headers, drill the tubesheets, cut and prep all casing materials, and perform all of the pressure part and casing welds.
    4 This gives HDB more control of the manufacturing sequence and schedule which has helped us achieve a remarkable record of on-time delivery performance.



    HRSG Economizer


    1 Economizers for today's HRSG modules are configured with fintubes that hang vertically. HDB has fabricated economizer coils for virtually all of the HRSG OEM companies and understands the unique features of each.
    2 In many cases, utilities desire to upgrade their economizers from plain carbon steel to an alloy material to help resist flow accelerated corrosion (FAC) inside the headers and tube bends.
    3 HDB is a one-stop shop for economizer fabrication because we prep all the materials and perform all of the pressure part and attachment welding, from finning the fintubes, fabricating the headers, and assembling the coil bundle.

    *Note:HD BOILER can bespoke special type of economizer according to customer's requirement.



    Test


    1 Latest type of 'U' bending machine is used for precision cold bending of tubes.
    2 Bending is done for all kind of heat exchanger, condenser, economizer, boiler tubes in Stainless Steel Seamless as well as welded.
    3 Subsequent to 'U' bending tubes are hydro tested & stress relieved if asked for.
    4 Also mock-up pieces are prepared for determining thickness reduction on the bend portion.
    5 Dye penetrant testing on the bend portion is done ro detect cracks, flaws or any type of defect.
    6 Special packing is provided to prevent any damages during transit.
