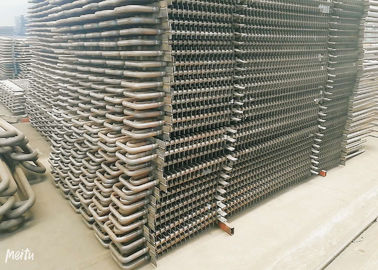

Carbon Steel Fin Tube Heat Exchanger Boiler H Fin Tube Power Station

Carbon Steel Fin Tube Heat Exchanger Boiler H Fin Tube Power Station

  • Carbon Steel  Fin Tube Heat Exchanger Boiler  H  Fin Tube Power Station
  • Carbon Steel  Fin Tube Heat Exchanger Boiler  H  Fin Tube Power Station
  • Carbon Steel  Fin Tube Heat Exchanger Boiler  H  Fin Tube Power Station
  • Carbon Steel  Fin Tube Heat Exchanger Boiler  H  Fin Tube Power Station
Carbon Steel  Fin Tube Heat Exchanger Boiler  H  Fin Tube Power Station
Product Details:
Place of Origin: China
Brand Name: HD BOILER
Certification: ISO9001 , SGS , TUV , ASME , EN
Model Number: H / Spiral TYPE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Iron Frame Packing
Delivery Time: 30 - 60 Days
Payment Terms: Western Union
Supply Ability: 1500 Tons Per Month
Contact Now
Detailed Product Description
Standard: ASME, EN, GB Material: ND Steel / Carbon Steel / Alloy Steel
Bare Tube: Cold Finished Application: Boiler System And Industrial System
Product Name: Fin Tube Heat Exchanger Specification: Customized
High Light:

spiral fin tube

,

heat exchanger fin tube

Carbon Steel H type fin tube and Spiral Finned Tube For Boiler Economizer ASME Standard





Product Description of Boiler Finned Tube

1.Finned Tube Heat Exchangers consist of a shell and finned tubes assembly.

2.Fins are used to increase the effective surface area of heat exchanger tubing.

3.Finned tubes are used when the heat transfer coefficient on the outside of the tubes is appreciably lower than that on the inside;as in heat transfer from a liquid to a gas,vapor to a gas ,such as steam to air heat exchanger, thermic fluid to air heat exchanger, when an extended surface is needed on only one fluid side or when the operating pressure needs to be contained on one fluid side.



Technical Parameter of Boiler Finned Tube

Medium air, flue gas, thermal oil, water, brine, refrigerant, etc.
Temperature standard heat exchanger to 560 ° C by special materials can be higher
Pipe materials carbon steel, stainless steel, alloy or special materials
Ribs materials carbon steel, stainless steel, non-ferrous metal, alloy or special materials
Thermal insulation &Surface treatment according to customers specification





Principle of Boiler Finned Tube

• H fin tube is a kind of boiler parts, to have two steel circular symmetry to be welded on fluorescent tubes to form fins positive shap much like letter "H", so called H-fin tube. H-economizer widely used in utility boilers, industrial boilers, marine power, such as the tail of heat exchanger components.

H-economizer two rectangular fin, similar to a square, its edge length for the fluorescent tubes of 2-fold, an expansion of the heating surface.

H-economizer flash resistance welding processes used, the welding seam after the high rate of fusion, weld tensile strength, and has good thermal conductivity. H-economizer can also manufacture dual tube "double H" type fin tubes, its rigid structure, and can be applied to a longer tube row occasion.



Detail of Boiler Finned Tube

In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.



Features of Boiler Finned Tube



1. The equipment body can be designed into many modules to ensure the long term and stable running;

2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage

3. Improve the heat transfer efficiency

4. Structure arrangement: In line or staggered arrangement

Carbon Steel  Fin Tube Heat Exchanger Boiler  H  Fin Tube Power Station 0





Quality Control



1 Impact test and Strength calculation report with applied materials information.
2 100%NDT(non-destructive inspection) report of steel plate, tube and electrode.
3 X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler.
4 Hydraulic test report: ensure the standard working pressure and safety.






Carbon Steel  Fin Tube Heat Exchanger Boiler  H  Fin Tube Power Station 1



Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
