| MOQ: | 1 Set / Sets 10tons |
| Price: | Negotiable |
| Standard Packaging: | Iron Frame Packing |
| Delivery Period: | 50-100 days |
| Payment Method: | L/C, , T/T, , Western Union |
| Supply Capacity: | 500 Tons Per Month |

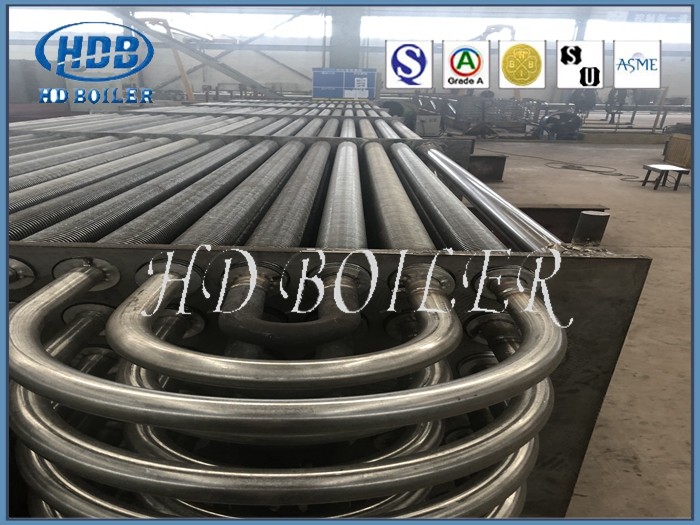

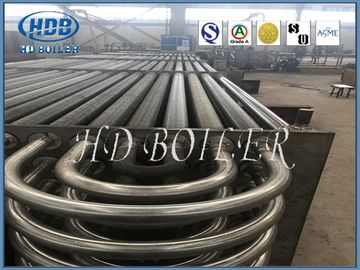

Sprial Double H Finned Tube Heat Exchanger Energy Saving For Boiler Parts
Product Description
A finned tube is a heat exchanger.To improve heat transfer efficiency, a heat transfer tube is usually made by adding fins to the surface of the heat transfer tube to increase its external area (or internal surface area).
Product Features
As a heat exchange element, the finned tube has been working under the condition of high-temperature flue gas for a long time. For example, the finned tube used for boiler heat exchanger has a harsh operating environment, high temperature, high pressure and corrosive atmosphere, which requires the finned tube to have a high performance index.
The anticorrosion properties
1.Anti - corrosion
2.Anti-wear
3.Low contact resistance
4.High Stability
5.Ability to prevent accumulation of dust
Product Advantage
1.Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2.H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3.H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4.With straight channel to gain the best ash-blowing effect.
5.The compact structure to reduce the weight and reduce the manufacturing cost.
| PRODUCT | TYPE | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE | FIN SIZE |
| Heat Exchanger Finned Tube | Extruded Fin Tube | All Kind of Material can be applied | Aluminum A1100 | 15.88~50.8 | 7~11.5FPI |
| Fin Height Max 16mmH | |||||
| L-Foot Fin Tube | All Kind of Material can be applied | Copper C1100, C1220 | 12.70~50.8 | 7~11.5FPI | |
| (Wrap On Type) | Fin Height Max 16mmH | ||||
| G-Fin Tube (Embedded Type) | Aluminum A1100, A1050, A1060 | ||||
| High Frequency Welded Finned Tube | A179 Carbon Steel Tube | Carbon Steel Tube | 12.70~160 | 1.5~7FPI | |
| Stainless Steel Tube | Stainless Steel Tube | 0.8~3.2mm. Thickness | |||
| Alloy Steel Material | Alloy Steel Material | ||||
| Integral Copper & Copper Alloy High Finned Tube | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88~22.23 | 5~9FPI | |
| Max 12mm. H | |||||
| Oval Finned Tube | Carbon Steel Tube | Carbon Steel Tube | All Size Available | 5~15FPI | |
| Stainless Steel Tube | Stainless Steel Tube | ||||
| Alloy Steel Material | Alloy Steel Material | ||||
| Copper & Copper Alloy Tube | Copper & Copper Alloy Tube | ||||
| Monometallic Fin Tube | Low Fin Tube | Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. | -- | 9.52~40 | 12, 16, 19 28 FPI, etc. |
| Turbo-C Tube | |||||
| Turbo-E Tube | |||||
| Corrugated Tube | All Kind of Material | -- | 6.35~40 | 2~9FPI |
