Heater Exchange Parts Carbon Steel Finned Pipe With Painted Surface Treat

Heater Exchange Parts Carbon Steel Finned Pipe With Painted Surface Treat

  • Heater Exchange Parts Carbon Steel Finned Pipe With Painted Surface Treat
  • Heater Exchange Parts Carbon Steel Finned Pipe With Painted Surface Treat
  • Heater Exchange Parts Carbon Steel Finned Pipe With Painted Surface Treat
  • Heater Exchange Parts Carbon Steel Finned Pipe With Painted Surface Treat
Heater Exchange Parts Carbon Steel Finned Pipe With Painted Surface Treat
Product Details:
Place of Origin: ZhangJiagang , Jiangsu , China
Brand Name: HD BOILER
Certification: ISO9001 , SGS , ASME , EN , TUV
Model Number: Spiral Fin Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Sets 10tons
Price: Negotiable
Packaging Details: Iron Frame Packing
Delivery Time: 50-100 days
Payment Terms: L/C, , T/T, , Western Union
Supply Ability: 500 Tons Per Month
Contact Now
Detailed Product Description
Application: Power Plant Boiler Pressure: High Pressure
Name: Finned Tube Type: Spiral Fin Tube, Serrated Finned Tube, H Type Fin Tube
Function: Heat Exchanger Material: Carbon Steel / Stainless Steel
High Light:

spiral fin tube

,

heat exchanger fin tube



                            Heater Exchange Parts Carbon Steel Finned Pipe With Painted Surface Treat



Product Description



Fin tubes have played an important part in power plant boilers .

Fin Tube,Extruded Fin tube,Welding Fin tube,L/LH Type Fin Tube,H Type Fin tube with Material A179/Alu1060,stainless steel,copper,copper nickel


Technical parameters The high degree of fin 0-16mm(or outside diameter of fin φ25-φ75);
Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
Single metal rolling finning tube Pure aluminum 1060 or aluminum alloy 6063,6061.
Outside diameter Shall be less than 40mm
Double metal rolling finning tube Tube-based protection from the outer layer of aluminum
tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless
steel tube and copper tube can also be used, as well as titanium alloy tube
Package The aluminum finned tubes are well packed in plastic film in the inner and steel fram
in the outer

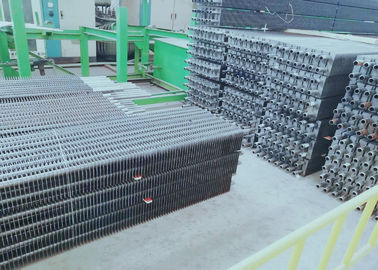

Heater Exchange Parts Carbon Steel Finned Pipe With Painted Surface Treat 0



Specifications

1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.

Base Tube Material
Stainless Steel, Carbon Steel, Alloy Steel, Copper Alloy,Aluminum ,SA179
Fin Material
Aluminum, Copper Alloy, Stainless Steel, Carbon Steel
Standard
ASME SA213/ASTM; ASME EA 106, ASME SA178, ASTM B1111
Fin depth
0.5-3mm
Base pipe O.D
12.7-18mm
Fins per inch
8-20Nos (as customer's request)
Test Requirement
Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement.
Application
Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchange, super heater etc.



Company Information


HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
