Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency

Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency

  • Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency
  • Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency
  • Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency
  • Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency
Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency
Product Details:
Place of Origin: Jiangsu , China
Brand Name: HDB
Certification: ISO9001,ASME,Grade A,SGS,EN
Model Number: Superheater and Reheater
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negociable
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 500 Tons per Month
Contact Now
Detailed Product Description
Structure: Electric Elements Pressure: Low/High Pressure
Fuel: Coal/Gas/Coal-fired/Water Heat Condition: New
Materials: Carbon Steel / Stainless Steel/Alloy Steel Color: Customized
Specification: Customized Packing: Iron Frame Package
High Light:

superheater in boiler

,

reheater in power plant

Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency

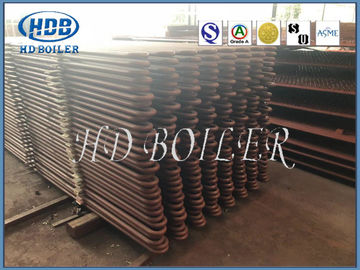

Superheater is a part of boiler that further heats steam from saturated temperature to superheat temperature, also known as steam superheater.The superheater can be divided into convection type, radiation type and half radiation type according to the heat transfer mode.According to the structural features can be divided into serpentine tube type, screen type, wall type and package wall type.They are made up of a number of parallel pipes and an inlet and outlet header.

Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency 0

Most industrial boilers do not have superheaters, as many industrial processes and facilities require only saturated steam.Superheater is usually installed in power stations, locomotives and Marine boilers to improve the cycle thermal efficiency of the entire steam power plant.


Details


All the raw materials will be firstly made pipeline cutting.

It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.

Setting Information
process
welding
structure
horizontal or vertical
material
carbon steel, alloy steel
tubes
φ32, 38, 42, etc.
size
customized
brand
HTEG
Warranty
18 months





Differences

Type Advantages Disadvantages Supporting method
Pendant-type 1.Firm structural support 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. supported from above
Inverted-type 1.Proper drainage of the condensed steam 1. Lack the structural rigidity, especially in high speed gas flow Supported from below
Horizontal -type

1. Proper drainage

2. Good structural rigidity.

1. They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.





Generally 30 ~ 60 mm.The most common type of flow superheater is serpentine tube.It has a more intensive tube group, decorate in 450 ~ 1000 ℃ flue of the flue gas temperature, flue gas of vertical and lateral erosion.The flue gas mainly transfers the heat to the pipe by convection, and some of the heat is absorbed by radiation.The plate-type superheater consists of a plurality of tube screens, arranged in the upper part of the furnace or at the outlet, belonging to the radiation or semi-radiation type superheater.The former absorbs radiant heat from the furnace flame, while the latter also absorbs some convection heat.In power station boilers above 10 mpa, both screen type and serpentine type superheater are commonly used to increase heat absorption.The wall superheater applied on the inner wall of the furnace is radiant superheater, which is seldom used.The wall-mounted superheater is used in the large capacity power station boiler to form the wall of the furnace top and convection flue.The picture shows the arrangement of several superheater.The small capacity industrial boilers with superheater can meet the requirements only with single stage superheater.


Application


Use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation

Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency 1

Certifaction


Stainless Steel Superheater And Reheater For Utility / Power Station , High Efficiency 2
