High Alloy Austenite Stainless Steel Superheater Coil Anti Corrosion Certificated

High Alloy Austenite Stainless Steel Superheater Coil Anti Corrosion Certificated

High Alloy Austenite Stainless Steel Superheater Coil Anti Corrosion Certificated
High Alloy Austenite Stainless Steel Superheater Coil Anti Corrosion Certificated
High Alloy Austenite Stainless Steel Superheater Coil Anti Corrosion Certificated
Product Details:
Place of Origin: Zhangjiagang,China
Brand Name: HD Boiler
Certification: ISO9001,ASME,Grade A,SGS,EN,TUV
Model Number: CFB Boiler
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Sets / Year
Contact Now
Detailed Product Description
Condition: New Structure: Fluidized Bed
Ship Port: Shanghai Water Circulation: Natural Circulation
Specification: Customized Pressure: High Pressure
Color: Customized Place Style: Vertical
High Light:

circulating fluidized bed boilers


utility boiler

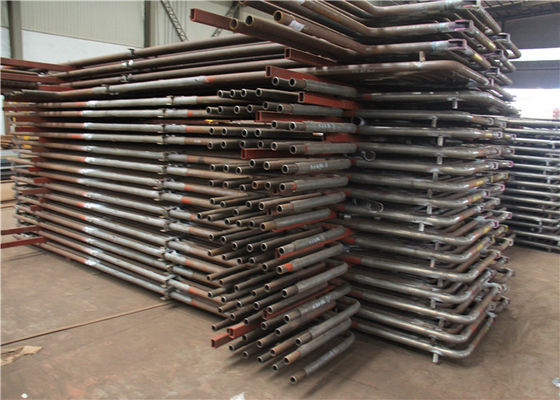

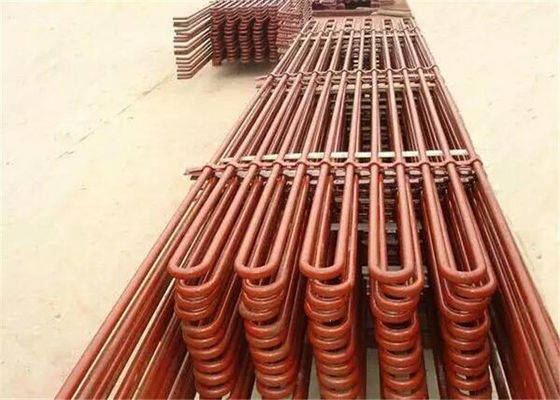

High Alloy Austenite Stainless Steel Superheater Coil Anti Corrosion Certificated

Product Description of superheater Coil

The function of Super heater in the thermal power plant is to remove the last traces of moisture from the saturated steam coming out of boiler and to increase its temperature above saturation temperature as per requirement at inlet of steam turbine.



Product Name
Stainless Steel Superheater Coil for Steam Boiler
Structure Type
Tube Coil (Serpentine), Screen
Tube Material
High Alloy Austenite Stainless Steel : 304, 310, 316, 347
China GB, ASME
Manufacturer Grade
China A Grade, ABS Certificated, TUV Certificated
Tube Type
Bare Tube
Tube Specification
As per Customer requirements
Tube Thickness
As per Customer requirements
Working Pressure
depends on material
Working Temperature
depends on material
Automatic GTAW(TIG) tube connecting



Model Capacity (t/h)



Steam temperature


Feed water temperature

Desulfurization efficiency


HD-35/3.82-M 35 3.82 450 150 min 82
HD-35/5.3-M 35 5.3 450 150 min 82
HD-75/3.82-M 75 3.82 450 150 min 82
HD-75/5.3-M 75 5.3 485 150 min 82
HD-75/9.8-M1 75 9.8 540 215 min 82
HD-130/3.82-M 130 3.82 450 172 min 82
HD-130/5.3-M 130 5.3 485 172 min 82
HD-130/9.8-M 130 9.8 540 215 min 82



1.Auxiliary fuel economizer;

Molecular structure of hydrocarbons by the fuel economizer processing, change, increase the distance between the molecules, the increase in the number of small molecular fuel viscosity decreased, the result of the fuel oil before burning atomization, refined, to improve greatly, spray into the combustion chamber internal are fully under the condition of low oxygen combustion, thus the blast volume of combustion equipment can reduce 15% to 20%, avoid to take away the heat in the flue, flue temperature drop 5 ℃ to 10 ℃.After the fuel of the combustion equipment is processed by energy saver, it can save oil from 4.87% to 6.10% due to the improvement of combustion efficiency. Besides, it can be clearly seen that the flame is bright and dazzling, black smoke disappears, and the furnace is clear and transparent.Completely remove the coking phenomenon of the combustion tip and prevent recoking.The phenomenon of slag accumulation on furnace wall due to insufficient combustion of fuel can be eliminated, and the effect of environmental protection and energy saving can be achieved.The pollution to the air caused by waste gas from combustion equipment is greatly reduced. The harmful components such as carbon monoxide (CO), nitrogen oxides (NOx) and hydrocarbon (HC) are greatly reduced, and the emission of harmful waste gas is reduced by more than 50%.Meanwhile, the dust content in waste gas can be reduced by 30%-40%.Location: between the pump and the combustion chamber and nozzle, the environment temperature should not exceed 360 ℃.

2.An energy saving device for a condensing gas boiler is installed on the upper wall.

The exhaust of gas-fired boiler contains up to 18% steam, which contains a large amount of latent heat which is not utilized. The exhaust temperature is high and the obvious heat loss is great.The burning of natural gas still emits nitrogen oxides, small amounts of sulfur dioxide and other pollutants.Reduce fuel consumption is the best way to reduce costs, condensing type gas boiler economizer can be installed directly in the existing boiler flue, recycling of the high temperature flue gas energy, reduce fuel consumption, economic benefit is very obvious, at the same time, the condensation of water vapor absorption nitrogen oxide in flue gas, sulphur dioxide and other pollutants, reduce the pollutant emissions, has the important significance of environmental protection.

3.Tube grid adopts condensing waste heat recovery boiler technology;

Traditional boiler, exhaust smoke temperature is in commonly 160 ~ 160 ℃, the flue gas water vapor is still in the overheated state, it is impossible to condense into liquid water and release latent heat of vaporization.It is well known that the boiler thermal efficiency is calculated by the low calorific value of fuel without considering the latent heat loss of vaporization in the high calorific value of fuel.Therefore, the thermal efficiency of traditional boiler can only reach 87% ~ 91%.And condensing waste heat recovery boiler, it reduce the exhaust temperature to 50 ~ 70 ℃, full recovery of sensible heat and water vapor condensation latent heat of the flue gas, increase the thermal efficiency;The condensed water can also be recycled.

4.The tail of the boiler adopts heat pipe waste heat recovery technology.

Waste heat is the energy that is not utilized in the energy utilization equipment under certain economic and technological conditions, namely the surplus and waste energy.It includes waste heat of high temperature waste gas, waste heat of cooling medium, waste water waste heat of waste gas, waste heat of high temperature products and slag, waste heat of chemical reaction, waste heat of combustible waste gas liquid and waste waste and pressure of high pressure fluid.According to the survey, the total waste heat resources of various industries account for about 17%~67% of their total fuel consumption, and the recycled waste heat resources are about 58% of the total waste heat resources.



Greatest Fuel Flexibility

• Best overall solution for high moisture fuels.
• Ability to burn fuels containing mid-level amounts of alkali.
• Proficient at combusting fuels from the extreme low-end to extreme high-end moisture contents.


Higher Efficiencies

• Lowest excess oxygen required for complete combustion.
• Lowest unburned carbon.


Highest Allowable Outputs

• Highest Pressure.
• Highest Temperature.
• Steam Flow (up to 1,000,000 PPH).


Lowest Uncontrolled Emissions of NOx, SO2, CO, VOC’s and PM.


Quality Control

1. Fabrication area of 400,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8.ASME 'S','U' and NB stamp authorization

High Alloy Austenite Stainless Steel Superheater Coil Anti Corrosion Certificated 0
