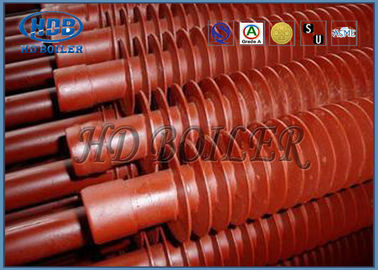

Stainless Steel Boiler Fin Tube / Spiral For Heat Transfer , Energy Saving

Stainless Steel Boiler Fin Tube / Spiral For Heat Transfer , Energy Saving

  • Stainless Steel Boiler Fin Tube / Spiral For Heat Transfer , Energy Saving
  • Stainless Steel Boiler Fin Tube / Spiral For Heat Transfer , Energy Saving
  • Stainless Steel Boiler Fin Tube / Spiral For Heat Transfer , Energy Saving
  • Stainless Steel Boiler Fin Tube / Spiral For Heat Transfer , Energy Saving
Stainless Steel Boiler Fin Tube / Spiral For Heat Transfer , Energy Saving
Product Details:
Place of Origin: ZhangJiagang , Jiangsu , China
Brand Name: HD BOILER
Certification: ISO9001 , SGS , ASME , EN , TUV
Model Number: Spiral Fin Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Sets 10tons
Price: Negotiable
Packaging Details: Iron Frame Packing
Delivery Time: 50-100 days
Payment Terms: L/C, , T/T, , Western Union
Supply Ability: 500 Tons Per Month
Contact Now
Detailed Product Description
Application: Boiler Parts Trademark: HD BOILER
Pressure: Low / High Pressure Range Of Applications: Power Station , Industrial
Specification: Customized Surface Treat: Painted
Function: Heat Exchanger Port: Shanghai , China
High Light:

spiral fin tube

,

heat exchanger fin tube



Stainless Steel Boiler Fin Tube / Spiral For Heat Transfer , Energy Saving





Grade A class industrial boiler economizer spiral fin tubes can saving large heating .



Description Heat boiler economizer, steam boiler economizer, oil boiler economizer, coal steam boiler economizer, Gas boiler economizer,etc
Material Alloy steel, Carbon steel, SA210C ,SA213T22, etc.
Material standard ASTM, EN or ISO etc.
Dimension Customization
Weight

Min: 10 ton

Max.:1000 ton

Smelting Process: EF+LF + VD
Process Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection
UT standard ASTM A388 or EN10228, etc



Product Description



1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.



Stainless Steel Boiler Fin Tube / Spiral For Heat Transfer , Energy Saving 0


Product Detail
PRODUCT TYPE TUBE MATERIAL FIN MATERIAL TUBE SIZE FIN SIZE
Heat Exchanger Finned Tube Extruded Fin Tube All Kind of Material can be applied Aluminum A1100 15.88~50.8 7~11.5FPI
Fin Height Max 16mmH
L-Foot Fin Tube All Kind of Material can be applied Copper C1100, C1220 12.70~50.8 7~11.5FPI
(Wrap On Type) Fin Height Max 16mmH
G-Fin Tube (Embedded Type) Aluminum A1100, A1050, A1060
High Frequency Welded Finned Tube A179 Carbon Steel Tube Carbon Steel Tube 12.70~160 1.5~7FPI
Stainless Steel Tube Stainless Steel Tube 0.8~3.2mm. Thickness
Alloy Steel Material Alloy Steel Material
Integral Copper & Copper Alloy High Finned Tube C12200, C11000, C70600 C12200, C11000, C70600 15.88~22.23 5~9FPI
Max 12mm. H
Oval Finned Tube Carbon Steel Tube Carbon Steel Tube All Size Available 5~15FPI
Stainless Steel Tube Stainless Steel Tube
Alloy Steel Material Alloy Steel Material
Copper & Copper Alloy Tube Copper & Copper Alloy Tube
Monometallic Fin Tube Low Fin Tube Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. -- 9.52~40 12, 16, 19 28 FPI, etc.
Turbo-C Tube
Turbo-E Tube
Corrugated Tube All Kind of Material -- 6.35~40 2~9FPI
