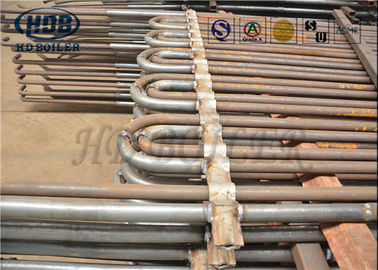

Completely Assembled Steam Pendant Superheater Heat Exchangers Boiler Auxiliaries For Power Plant

Completely Assembled Steam Pendant Superheater Heat Exchangers Boiler Auxiliaries For Power Plant

MOQ: 1Set
Price: Negotiable
Standard Packaging: Seaworthy Packing
Delivery Period: 30 Days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 1500 Tons / Month
Detail Information
Place of Origin
China
Brand Name
HD Boiler
Certification
ISO9001 , SGS , TUV , ASME , EN
Model Number
Superheater and Reheater
Fuel:
Coal/Gas/Oil-fired,Water Heat
Type:
Coils
Pressure:
Low/High Pressure
Range Of Applications:
Industry/Power Station
Specification:
Customized
Highlight:

superheater in boiler

,

reheater in power plant

Product Description

Completely Assembled Steam Pendant Superheater Heat Exchangers Boiler Auxiliaries For Power Plant



Product Function



HDB thermal efficient steam super heater for coal fired boilers
Specification:
Super heaters are the one of the most important boiler sapre parts that improves the thermal efficiency. High temperature steam boiler radiant super heater is usually applied in high pressure power plant boiler.



In the boiler, the role of super heater is to heat the saturated steam to a certain temperature of superheated steam to increase power plant efficiency. Repeater essentially further improves the thermal power plant cycle efficiency.


Steam Super heater Coils: Super heater coils are used in a boiler to generate saturated steam. The super heater coils are specially used in Boilers of Power plant. We manufacture Super heater coils in various grades of Alloy steel and in stain less steel tubes with or without support & Header as per customer's drawing.



Super heater types:
1. Radiant super heater: it is the earliest type of super heater and it is located above or behind banks of water tubes to protection them from direct flam or fire.
Parameters that increases the convection



a. Increasing the fuel-and air flow (combustion gas flow)
b. Increasing the mass flow rate of the steam



Radiation is mainly dependent on the flam temperature. as the steam flow rate increases the exit temperature become lower.
Radiant super heater
They are placed exposed to the heat source whcih requires the improvement of metal temperatures.



Radiant and convetive super heaters and reheaters are used for high temperature steam.
The accessory of high temperature radiant steam super heater in boiler



It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have φ32, φ38, φ42 or other types of specifications, according to user's needs separately.


Reheaters
They are the sane as the super heaters but as their exit temperature is a little bit less than super heaters and their pressure is 20% -25% less than the super heater, they can stand less quality material alloys.



Application:
Steam super heater is consisted of dense tube coils and is placed in the flue under the tempearture 450ºC-1000ºC.
For power plant boiler capacity over 10Mpa, platen and coiled superheater are usually adopted.



Details



1 Material composition Carbon steel, alloy steel or heat-resistant steel, collection boxes and other supporting material. Tubes are customized types of specifications.
2 Design pattern Vertical or horizontal layout.
3 Advantages Beautiful appearance, size, accuracy, first-class bending and welding technology, first-class detection equipment.




Design structure

1. heating saturated steam, temperature up to 900 degree C.



2. high efficiency, >90%.



3. high speed heating.



4. design with stainless steel.



5. long design service life, 15 years.



Completely Assembled Steam Pendant Superheater Heat Exchangers Boiler Auxiliaries For Power Plant 0



Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.





HD Boiler offers a best in class facility,including

  • Fabrication area of 200,000 square meters
  • 150 Engineers
  • 600 Coded welders
  • 60 Licensed Inspectors (including NDT level-lll instructors)
  • Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
  • ISO 90001:2008 Quality System
  • ASME Certificate of Utility Boiler
  • ASME‘S’ , ‘U’ and NB stamp authorization
