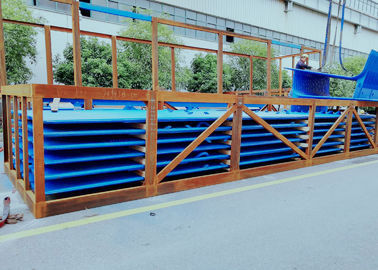

Mandrel Embedded SA210 A1 Boiler Membrane Wall SA 36 Fin Bar Mandrel X10CrAISi18
Product Details
| Tube Material: | SA 210 A1 | Fin Bar: | SA 36 |
|---|---|---|---|
| Design & Fabrication: | ASME SECTION I,2017 EDITION | NDE REQUIREMENTS: | RT,PT,UT |
| Anti-corrosion Paint: | CORTEC VPCI-609/609S | Name: | Boiler Water Walls |
| Highlight |
boiler water wall panels,boiler water wall tubes |
||
Product Description
Water wall panel mandrel embedded SA210 A1 as tube raw material SA 36 fin bar Mandrel X10CrAISi18
Introduction
| 1 | Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. |
| 2 | We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. |
| 3 | We supply Panels with integrated manhole openings in the panels. |
| 4 | Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. |
| 5 | These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler. |
Application
| 1 | Energy saving enviromental protection china supplier membrane water wall for CFB boiler are membrane walls that are made of tubes welded together with or without a strip of metal in between. |
| 2 | These walls form the enclosure of the coal combustion chamber. |
| 3 | Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler. |
Additional
| 1 | Water wall panels are used in Waste Heat recovery boilers. |
| 2 | We manufacture Water wall panels,these are fabricated out of carbon steel tubes to customers' drawings and specifications. |
| 3 | Special care is taken for ovality and thinning at the bent portion,during fabrication. |
| 4 | We are manufacturing and supplying a comprehensive range of Waterwall Panels. |
| 5 | The tubes offered by us are known to withstand a great internal pressure as a continual strip of fin material is wound spirally on the tube. |
| 6 | These tubes are known to provide heat uniformly that result in an increased heat output. |
| 7 | The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber. |
Product Highlights
Water wall panel mandrel embedded SA210 A1 as tube raw material SA 36 fin bar Mandrel X10CrAISi18 Introduction 1 Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. 2 We fabricate Water Wall Panels using automatic Fin to ...
