Power Station Boiler Superheater Coil And Reheater , Energy Saved Heat Exchanger

Power Station Boiler Superheater Coil And Reheater , Energy Saved Heat Exchanger

Power Station Boiler Superheater Coil And Reheater , Energy Saved Heat Exchanger
Power Station Boiler Superheater Coil And Reheater , Energy Saved Heat Exchanger
Power Station Boiler Superheater Coil And Reheater , Energy Saved Heat Exchanger
Product Details:
Place of Origin: Jiangsu , China
Brand Name: HDB
Certification: ISO9001,ASME,Grade A,SGS,EN
Model Number: Superheater and Reheater
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negociable
Packaging Details: Iron Frame Package
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 500 Tons per Month
Contact Now
Detailed Product Description
Structure: Electric Elements Pressure: Low/High Pressure
Fuel: Coal/Gas/Coal-fired/Water Heat Condition: New
Materials: Carbon Steel / Stainless Steel Color: Depends
High Light:

convection superheater

,

superheater in boiler



Power Station Boiler Superheater Coil And Reheater , Energy Saved Heat Exchanger





Product Description of Superheater Coil

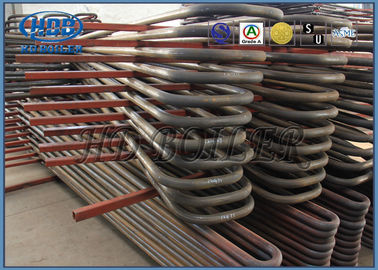

Superheater Coil
Fossil fuel power plants often have a superheater section in the steam generating furnace.The steam passes through drying equipment inside the steam drum on to the superheater, a set of tubes in the furnace. Here the steam picks up more energy from hot flue gases outside the tubing, and its temperature is now superheated above the saturation temperature.

Reheater
Power plant furnaces may have a reheater section containing tubes heated by hot flue gases outside the tubes. Exhaust steam from the high-pressure turbine is passed through these heated tubes to collect more energy before driving the intermediate and then low-pressure turbines.



Power Station Boiler Superheater Coil And Reheater , Energy Saved Heat Exchanger 0



In power station boilers, the effect of superheaters is to heat the steam to certain temperature for higher efficiency of the power station. Reheaters are steam superheaters to reheat the over-worked long-pressure or middle-pressure steam to certain temperature.



The use of rehearters can further improve heat power of the power station circulating and control the steam temperature of the end blades of the steam turbine within allowed range. Zigzag superheaters and reheaters of the Company are also unique with rigorous production technique, first-class production flow line and complete test methods.




Details of Superheater Coil


All the raw materials will be firstly made pipeline cutting.

It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.



With the artistic apperance and accurate size,the advance process for bending tube and welding,the first rate test equipment and sophisticated technology



Power Station Boiler Superheater Coil And Reheater , Energy Saved Heat Exchanger 1

Differences of Superheater Coil


Type Advantages Disadvantages Supporting method
Pendant-type 1.Firm structural support 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. supported from above
Inverted-type 1.Proper drainage of the condensed steam 1. Lack the structural rigidity, especially in high speed gas flow Supported from below
Horizontal -type

1. Proper drainage

2. Good structural rigidity.

1. They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.


Application of Superheater Coil


use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation


Workshop


Power Station Boiler Superheater Coil And Reheater , Energy Saved Heat Exchanger 2

Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.


Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
