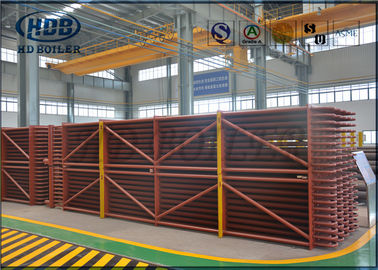

Condensing CFB Boiler Economizer Coil / Economiser In Power Plant ASME Standard

Condensing CFB Boiler Economizer Coil / Economiser In Power Plant ASME Standard

    • Condensing CFB Boiler Economizer Coil / Economiser In Power Plant ASME Standard
    • Condensing CFB Boiler Economizer Coil / Economiser In Power Plant ASME Standard
    • Condensing CFB Boiler Economizer Coil / Economiser In Power Plant ASME Standard
    • Condensing CFB Boiler Economizer Coil / Economiser In Power Plant ASME Standard
  • Condensing CFB Boiler Economizer Coil / Economiser In Power Plant ASME Standard

    Product Details:

    Place of Origin: China
    Brand Name: HD BOILER
    Certification: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Economizer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set / Sets 10tons
    Price: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 500 Tons per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Usage: Power Plant/CFB Boiler
    Type: Natural Circulation / Once Through Structure: Hot / Water Tube
    Dimension: Customization Output: Hot Water/Steam
    High Light:

    power plant economizer

    ,

    economizer for boiler

     Condensing CFB Boiler Economizer Coil / Economiser In Power Plant ASME Standard





    Performance characteristics:



    1. Excellent anti-wear performance
    2. Less fouling

    3. Compact space
    4. Welded Joints less
    5. Stability





    Parameter



    Name(unit) Specification(mm)
    Bare pipe(OD) 25-165
    Bare pipe(Thickness) 2-8
    Fin (Thickness) 0.6-3.0
    Fin (Height) 5-30
    Fin tube thread pitch 5-30
    Fin tube length ≤12000



    *Note:HD BOILER can bespoke special type of economizer according to customer's requirement.



    Specification:



    CFB series energy saving boiler high quality economizer is a heat exchanger device that captures the "lost or waste heat" from the boiler's hot stack gas.

    The latest technology boiler spiral finned tubes economizer typically transfers this waste heat to the boiler's feed-water or return water circuit, but it can also be used to heat domestic water or other process fluids. This is the introduction about CFB series energy saving boiler high quality economizer.





    Manufacturing and acceptance criteria:



    · JB/T6512 "boiler with a high-frequency resistance welding spiral fin tube manufacturing technology conditions"
    · HG/T3181 "high-frequency resistance welding spiral fin tube"
    · JB/T6511 "spiral finned tube test technical conditions."
    · JB1611 "boiler tube mane box assembly conditions"
    · JB/T1612 "boiler pressurufacturing conditions."
    · JB16I3 "boiler pressure parts welding conditions."





    Condensing CFB Boiler Economizer Coil / Economiser In Power Plant ASME Standard 0



    Company Introduction

    HD Boiler offers a best in class facility,including:

    • Fabrication area of 200,000 square meters
    • 150 Engineers
    • 600 Coded welders
    • 60 Licensed Inspectors (including NDT level-lll instructors)
    • Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
    • ISO 90001:2008 Quality System
    • ASME Certificate of Utility Boiler
    • ASMES’ , ‘U’ and NB stamp authorization
