Stainless Steel Superheater And Reheater for Coal Fired Boilers as Boiler Heat Exchanger

Stainless Steel Superheater And Reheater for Coal Fired Boilers as Boiler Heat Exchanger

  • Stainless Steel Superheater And Reheater for Coal Fired Boilers  as Boiler Heat Exchanger
  • Stainless Steel Superheater And Reheater for Coal Fired Boilers  as Boiler Heat Exchanger
  • Stainless Steel Superheater And Reheater for Coal Fired Boilers  as Boiler Heat Exchanger
  • Stainless Steel Superheater And Reheater for Coal Fired Boilers  as Boiler Heat Exchanger
Stainless Steel Superheater And Reheater for Coal Fired Boilers  as Boiler Heat Exchanger
Product Details:
Place of Origin: Jiangsu , China
Brand Name: HDB
Certification: ISO9001,ASME,Grade A,SGS,EN
Model Number: Superheater and Reheater
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negociable
Packaging Details: Iron Frame Packing
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 500 Tons per Month
Contact Now
Detailed Product Description
Product Name: Steam Superheater And Reheater Application: Boiler System
Fuel Of Boiler: Coal/Gas/Coal-fired/Water Heat Certificate: ASME, EN, GB
Materials: Carbon Steel / Stainless Steel Color: Customer's Requirement
High Light:

convection superheater

,

reheater in power plant

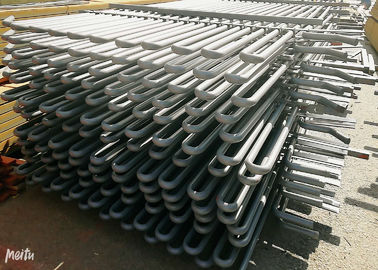

Stainless Steel Superheater And Reheater for Coal Fired Boilers as Boiler Heat Exchanger





Product Description of Superheater and Reheater


Superheaters are the one of the most important accessories of boiler that improves the thermal efficiency.



In the boiler, the role of superheater is to heat the saturated steam to a certain temperature of superheated steam to increase power plant efficiency. Repeater essentially further improves the thermal power plant cycle efficiency.



Stainless Steel Superheater And Reheater for Coal Fired Boilers  as Boiler Heat Exchanger 0



In power station boilers, the effect of superheaters is to heat the steam to certain temperature for higher efficiency of the power station. Reheaters are steam superheaters to reheat the over-worked long-pressure or middle-pressure steam to certain temperature.



The use of rehearters can further improve heat power of the power station circulating and control the steam temperature of the end blades of the steam turbine within allowed range. Zigzag superheaters and reheaters of the Company are also unique with rigorous production technique, first-class production flow line and complete test methods.




Details of Superheater and Reheater


All the raw materials will be firstly made pipeline cutting.

It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.



With the artistic apperance and accurate size,the advance process for bending tube and welding,the first rate test equipment and sophisticated technology



Stainless Steel Superheater And Reheater for Coal Fired Boilers  as Boiler Heat Exchanger 1

Differences of Superheater and Reheater

Type Advantages Disadvantages Supporting method
Pendant-type 1.Firm structural support 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. supported from above
Inverted-type 1.Proper drainage of the condensed steam 1. Lack the structural rigidity, especially in high speed gas flow Supported from below
Horizontal -type

1. Proper drainage

2. Good structural rigidity.

1. They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.


Application


use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation

Workshop


Stainless Steel Superheater And Reheater for Coal Fired Boilers  as Boiler Heat Exchanger 2

Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.



Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.

1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
