Customized ASME SA178 H-Fin Tubes High Weld Fusion Energy Saving Carbon Steel
Product Details
| Type: | Double H Type Fin, Single H Type Fin | Application: | Heater Parts, Heat Exchanger,Condenser, Boiler |
|---|---|---|---|
| Fin Material: | Aluminum,and Steel Etc | Tube Material: | Carbon Steel, Stainless Steel, Alloy Steel, Copper, Aluminum |
| Material: | Carbon Steel | Heat Transfer Efficiency: | High Efficiency |
| Keywords: | H Fin Tube | Color: | Customized |
| Highlight |
High Weld Fusion H-Fin Tubes,Energy-Saving H-Fin Tubes,ASME SA178 H-Fin Tubes |
||
Product Description
Customized ASME SA178 H-Fin Tubes High Weld Fusion Energy-Saving Carbon Steel
What are the advantages of finned tubes?
Higher heat transfer efficiency, reduced size/weight, and lower fuel consumption.
Design and development
Collect all parameters for product design, make design acording to the Supervisory Regulations on Boiler Safety Technology, other laws, rules, regulations and professional standards, and 100% meet the product standards and customers' requirements.
Product Introduction

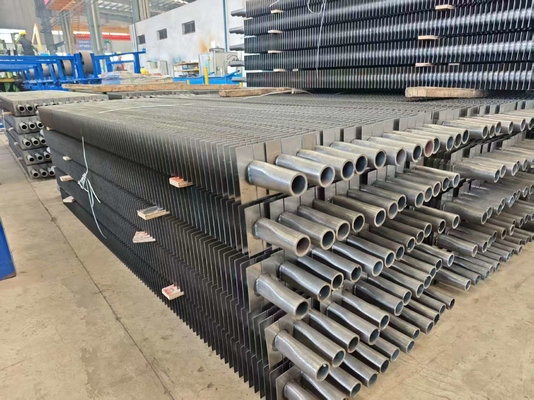

An H-type fin tube is made by symmetrically welding two steel strips to a plain tube with an arc. The result looks like the letter “H,” and it’s a top-notch solution for increasing the heating surface, helping you save energy big time.
These tubes are stacked with benefits: high weld fusion rate, strong tensile strength, low contact thermal resistance, excellent heat transfer, and great expansion ability. When used to build an H-type economizer, it ends up with high heat exchange efficiency, low flow resistance, minimal wear, and a lightweight design. Compared to regular fin tubes and spiral ribbed tubes, H-type fin tubes can expand the heating surface to the max.
One more win: for the same heat exchange performance, an H-type fin tube economizer takes up far less space. And it’s not just for economizers—you can use them to make H-type evaporators, superheaters, heaters, and more. That’s why they’re listed in China’s High-tech Product Catalog.
Advantages
Classification
| PRODUCT | TYPE | TUBE MATERIAL | FIN MATERIAL | TUBE SIZE | FIN SIZE |
| Heat Exchanger Finned Tube | Extruded Fin Tube | All Kind of Material can be applied | Aluminum A1100 | 15.88~50.8 | 7~11.5FPI |
| Fin Height Max 16mmH | |||||
| L-Foot Fin Tube | All Kind of Material can be applied | Copper C1100, C1220 | 12.70~50.8 | 7~11.5FPI | |
| (Wrap On Type) | Fin Height Max 16mmH | ||||
| G-Fin Tube (Embedded Type) | Aluminum A1100, A1050, A1060 | ||||
| High Frequency Welded Finned Tube | A179 Carbon Steel Tube | Carbon Steel Tube | 12.70~160 | 1.5~7FPI | |
| Stainless Steel Tube | Stainless Steel Tube | 0.8~3.2mm. Thickness | |||
| Alloy Steel Material | Alloy Steel Material | ||||
| Integral Copper & Copper Alloy High Finned Tube | C12200, C11000, C70600 | C12200, C11000, C70600 | 15.88~22.23 | 5~9FPI | |
| Max 12mm. H | |||||
| Oval Finned Tube | Carbon Steel Tube | Carbon Steel Tube | All Size Available | 5~15FPI | |
| Stainless Steel Tube | Stainless Steel Tube | ||||
| Alloy Steel Material | Alloy Steel Material | ||||
| Copper & Copper Alloy Tube | Copper & Copper Alloy Tube | ||||
| Monometallic Fin Tube | Low Fin Tube | Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. | -- | 9.52~40 | 12, 16, 19 28 FPI, etc. |
| Turbo-C Tube | |||||
| Turbo-E Tube | |||||
| Corrugated Tube | All Kind of Material | -- | 6.35~40 | 2~9FPI |
Company Information
Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000 ㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.
