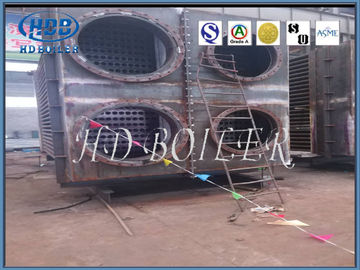

Customized Design Boiler Air Preheater Heat Preservation High Efficiency

Customized Design Boiler Air Preheater Heat Preservation High Efficiency

    • Customized Design Boiler Air Preheater Heat Preservation High Efficiency
    • Customized Design Boiler Air Preheater Heat Preservation High Efficiency
  • Customized Design Boiler Air Preheater Heat Preservation High Efficiency

    Product Details:

    Place of Origin: China
    Brand Name: HD BOILER
    Certification: ISO9001,ASME,Grade A,SGS,EN
    Model Number: APH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets 10tons
    Price: Negotiable
    Packaging Details: Iron Frame Package
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Tons per Month
    Contact Now
    Detailed Product Description
    Type: Pressure Parts Pressure: Low / High Pressure
    Range Of Applications: Industrial / Power Station Specification: Customized
    Condition: New Surface Treatment: Painted
    Style: Horizontal And Vertical Packing: Iron Frame Package


    Customized Design Boiler Air Preheater Heat Preservation High Efficiency



    Air preheater, or boiler preheater, is an important boiler part. It can be divided into two kinds, Tubular type air preheater and Vertical type air preheater.

    Air preheater pipe type, mainly using industrial furnaces or smoke waste heat boiler combustion air preheating furnace enter, such not only improves the thermal efficiency of the stove and reduce the environment pollution.
    Enamel air preheater products are classified as following by application
    1. Enamel heat exchanger designed for denitration renovation projects
    2. Enamel heat exchanger for circulating fluidized bed boiler and pulverized coal boilers Heat

    exchanger parts for garbage incinerators and biomass boilers
    3.Heat exchanger parts for grate furnaces, like chain grate furnaces4.Heat exchanger parts for gas-fueled boilers, such as kerosene boilers, coke ovens, etc.


    Air pre-heater is a kind of equipment used to improve the heat exchange performance of the boiler and reduce energy consumption.Air preheater can be divided into three types: plate type, rotary type and pipe type.The working principle of air preheater is introduced with rotary type as an example.A large amount of unburned combustible material will be deposited on the heat transfer element and possibly air preheater will catch fire.The analysis of brake loss and air leakage treatment are also introduced in detail.




    Layout  Horizontal layout Vertical Lout
    Tube arrangement

    Staggered arrangement

    In-line arrangement

    Staggered arrangement

    In-line arrangement

    Sealing of pipe and plate Packing heat-resistan material / welding  Welding


    High efficiency and energy saving boiler part air preheater is a general term used to describe any device designed to heat air before another process (for example, combustion in a boiler) with the primary objective of increasing the thermal efficiency of the process. They may be used alone or to replace a recuperative heat system or to replace a steam coil.



    1. Improve and intensify combustion
    After passing through the waste heat device, the air enters the furnace, which accelerates the drying, ignition and combustion process of fuel, ensures the stable combustion in the boiler and improves the combustion efficiency.
    2. Enhanced heat transfer
    As the combustion in the furnace is improved and strengthened, and the temperature of the hot air entering the furnace is increased, the average temperature in the furnace is also increased, which can strengthen the radiation heat transfer in the furnace.
    3. Reduce the loss in the furnace, reduce the exhaust temperature and improve the thermal efficiency of the boiler
    The chemical incomplete combustion loss can be reduced because the combustion is stable and the radiation heat exchange is intensified.On the other hand, the waste heat of flue gas is utilized by air preheater, which further reduces the loss of exhaust smoke and improves the thermal efficiency of boiler.According to experience, when the air preheater in rise by 1.5 ℃, exhaust temperature can reduce 1 ℃. After installation of air preheater in boiler flue, if we can put the air heat 150-160 ℃, can reduce exhaust temperature 110-120 ℃, the boiler thermal efficiency can be increased by 7% - 7.5%.You can save 11 to 12 percent on fuel.
    4. Hot air can be used as fuel drying agent
    For the layer combustion furnace, hot air can use fuel with high moisture and ash content. For the power station boiler, hot air is an important desiccant and coal powder transmission medium of the powder system.

    Customized Design Boiler Air Preheater Heat Preservation High Efficiency



    1. As the flue gas across tube, the flue gas side of the heat capacity of exile to strengthen, under the same heat transfer coefficient, wall temperature vertical preheater than ordinary steel increased 10-30 Degree Celsius, the overall heat transfer coefficient of about 20.3-24.2W;
    2. Two horizontal sealing tube box, the sealed tube box structure welded high strength, pipe damaged or the overall change can only block, and heat-packing seal, can only replace the damaged pipe tube, easy maintenance.
    3. The tube air preheater is mainly used for boiler preheater, the low temperature.



    Company Introduction

    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.


    1. Fabrication area of 200,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization
