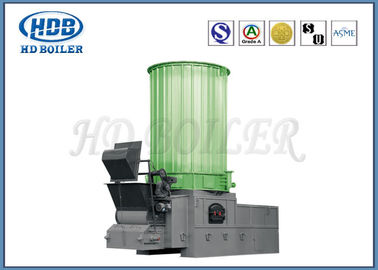

YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube

YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube

  • YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
  • YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
  • YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
  • YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube
Product Details:
Place of Origin: China
Brand Name: HD Boiler
Certification: ISO9001,ASME,Grade A,SGS,EN
Model Number: YLL/YGL
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability: 500 Sets / Per Year
Contact Now
Detailed Product Description
Condition: New Structure: Fire/Water Tube
Fuel Available: Coal Burning Style: Internal Firing Boiler
Manufacturing Level: A Surface Treatment: Painted
Operation: Automatic Place Style: Vertical
High Light:

thermal fluid boiler

,

heating oil boiler





Structural features


1, YLL/YGL type series organic heat carrier furnace for packaged forced circulation chain grate/ fixed furnace boiler. Boiler by upper body and lower grate/ fixed furnace composition, jobsite combination.



2, Boiler heating surface using dense row circular coil, by inside and outside, multilayer tight row circular tube composition.



3, Boiler structure is compact, cover an area of an area small, high degree of assembly, installation period is short.



The performance advantage


1, Energy-efficient

2, Safe and reliable

3, Environmental protection



YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube 0





Parameter



Model



YGL

-180M

YGL

-3000M

YGL

-350M

YGL

-460M

YGL

-700M

YGL

-1000M

YGL

-1200M

YGL

-1400M

YGL

-1600M

YGL

-1900M

Delivered heatx×104kcal/h

15 25 30 40 60 80 100 120 140 160

System heating efficiency(%)

73 73 73 73 76 76 76 76 78 78

Design pressure(Mpa)

1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1

Max.working temperature(ºC)

320 320 320 320 320 320 320 320 320 320

Medium circulation speed m 3 /h

12.5 40 40 60 80 100 100 100 100 160

Diameter of main pipe(DN)

40 80 80 100 100 125 125 125 125 150

Installation capacity(kW)

8.5 15 18(15) 24(20) 28(25) 45(40) 53(48) 60(55) 60 80(73)

Applicable fuel

 Soft coal and anthracitic coal



Production Workshop


YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube 1



Certifications




YLL/YGL Coal Fired Vertical Organic Heat Carrier Boiler Fire / Water Tube 2



Company Introduction


Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
