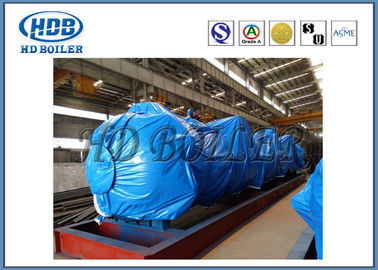

Subcritical Recirculation Boiler Steam Drum Carbon Steel 96mm Thickness

Subcritical Recirculation Boiler Steam Drum Carbon Steel 96mm Thickness

  • Subcritical Recirculation Boiler Steam Drum Carbon Steel 96mm Thickness
  • Subcritical Recirculation Boiler Steam Drum Carbon Steel 96mm Thickness
  • Subcritical Recirculation Boiler Steam Drum Carbon Steel 96mm Thickness
  • Subcritical Recirculation Boiler Steam Drum Carbon Steel 96mm Thickness
Subcritical Recirculation Boiler Steam Drum Carbon Steel 96mm Thickness
Product Details:
Place of Origin: China
Brand Name: HD Boiler
Certification: ISO9001 , SGS , TUV , ASME , EN
Model Number: Steam drum
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 50~100 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400 Tons per month
Contact Now
Detailed Product Description
Condition: New Fuel: Coal / Gas / Coal-fired / Water Heat
Type: Natural Circulation Pressure: Low / High Pressure
Surface Treatment: Painted Output: Hot Water / Steam
High Light:

steam drum in boiler

,

boiler mud drum





Subcritical Recirculation boiler steam drum carbon steel 96mm thickness





Product Description

Drum saturated steam is separated from the steam-water mixture discharged from the risers in its steam space and in the separating equipment installed in it.The steam drum is also a water storage vessel which accomodates the changes in water level during load changes and internal water treatment;therefore the steam drum size must be large enough to house the separating equipment and to contain the required quantity of water.



Functions


• Separation of saturated steam from the steam-water mixture produced by evaporating tubes.

• Mixing feed water from economiser and water separated from steam-water mixture,and re-circulate through the evaporating tubes.

• Carrying out blow down for reduction of boiler water dissoled solid concentration.

• Treatment of Boiler Water by chemicals.



Technical Parameter


e.g.

TECHNICAL DATA OF DRUM
Design Pressure 210 kg/cm2(g)
Operating Pressure 197kg/cm2(g)
Water Holding Captacity 60m3
Design Temperature 369ºC
No of Cyclone Separator 92(46×2)
No of Secondary Drier 124
OD of Drum 1778mm
Thickness(Straight Portion/Dished Portion) 155mm
Weoght of Drum without Internals 214.7MT



Subcritical Recirculation Boiler Steam Drum Carbon Steel 96mm Thickness 0

No. Details Qty(In Nos)
1 DWLG&EWLI 15(Both Side)
2 Test Tapings 4
3 Air Vent 2
4 Chemical Feed Nozzle 1
5 DWLG&EWLI 15(Both Side)
6 CBD 1



Quality Control




1. Fabrication area of 200,000 square meters

2. 150 Engineers

3. 600 Coded welders

4. 60 Licensed Inspectors(NDT Level-III instructors)

5. Class-A Licenses for Design and Manufacture Boiler

6. ISO 9001:2008 Quality System

7. ASME Certificate of Power Boilers

8. ASME 'S','U' and NB stamp authorization

Subcritical Recirculation Boiler Steam Drum Carbon Steel 96mm Thickness 1



Company Introduction


Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



Design and Manufacturing capacity


1. Two automatic coiler production lines

2. Hot bending to minimum bending radius 0.6D

3. Membrane wall tube bending , with horizontal and vertical panel bending machines

4. Panel fabrication for up to for 1000MW power plant boilers

5. Fabrication of CFB Boiler Cyclone Separators

6. Fabrication of Header to Chinese standards(GB), US standards (ASME), or EU standard (EN)

7. Broad range of heat treatment equipment including 10 furnaces, offering normalizing and tempering
