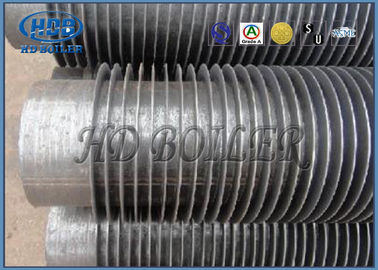

Industrial Boiler Economizer Heat Exchanger Tubes , Boiler Fin Tube For Heat Transfer

Industrial Boiler Economizer Heat Exchanger Tubes , Boiler Fin Tube For Heat Transfer

  • Industrial Boiler Economizer Heat Exchanger Tubes , Boiler Fin Tube For Heat Transfer
  • Industrial Boiler Economizer Heat Exchanger Tubes , Boiler Fin Tube For Heat Transfer
  • Industrial Boiler Economizer Heat Exchanger Tubes , Boiler Fin Tube For Heat Transfer
  • Industrial Boiler Economizer Heat Exchanger Tubes , Boiler Fin Tube For Heat Transfer
Industrial Boiler Economizer Heat Exchanger Tubes , Boiler Fin Tube For Heat Transfer
Product Details:
Place of Origin: ZhangJiagang , Jiangsu , China
Brand Name: HD BOILER
Certification: ISO9001 , SGS , ASME , EN , TUV
Model Number: Spiral Fin Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set / Sets 10tons
Price: Negotiable
Packaging Details: Iron Frame Packing
Delivery Time: 50-100 days
Payment Terms: L/C, , T/T, , Western Union
Supply Ability: 500 Tons Per Month
Contact Now
Detailed Product Description
Application: Boiler Parts Pressure: Low / High Pressure
Range Of Applications: Power Station , Industrial Specification: Customized
Surface Treat: Painted HS Code: 3215960855
Function: Heat Exchanger Material: Carbon Steel
High Light:

spiral fin tube

,

heat exchanger fin tube



Product Description



Fin Tube,Extruded Fin tube,Welding Fin tube,L/LH Type Fin Tube,H Type Fin tube with Material A179/Alu1060,stainless steel,copper,copper nickel


Technical parameters The high degree of fin 0-16mm(or outside diameter of fin φ25-φ75);
Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
Single metal rolling finning tube Pure aluminum 1060 or aluminum alloy 6063,6061.
Outside diameter Shall be less than 40mm
Double metal rolling finning tube Tube-based protection from the outer layer of aluminum
tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless
steel tube and copper tube can also be used, as well as titanium alloy tube
Package The aluminum finned tubes are well packed in plastic film in the inner and steel fram
in the outer







Industrial Boiler Economizer Heat Exchanger Tubes , Boiler Fin Tube For Heat Transfer 0



PRODUCT TYPE TUBE MATERIAL FIN MATERIAL TUBE SIZE FIN SIZE
Heat Exchanger Finned Tube Extruded Fin Tube All Kind of Material can be applied Aluminum A1100 15.88~50.8 7~11.5FPI
Fin Height Max 16mmH
L-Foot Fin Tube All Kind of Material can be applied Copper C1100, C1220 12.70~50.8 7~11.5FPI
(Wrap On Type) Fin Height Max 16mmH
G-Fin Tube (Embedded Type) Aluminum A1100, A1050, A1060
High Frequency Welded Finned Tube A179 Carbon Steel Tube Carbon Steel Tube 12.70~160 1.5~7FPI
Stainless Steel Tube Stainless Steel Tube 0.8~3.2mm. Thickness
Alloy Steel Material Alloy Steel Material
Integral Copper & Copper Alloy High Finned Tube C12200, C11000, C70600 C12200, C11000, C70600 15.88~22.23 5~9FPI
Max 12mm. H
Oval Finned Tube Carbon Steel Tube Carbon Steel Tube All Size Available 5~15FPI
Stainless Steel Tube Stainless Steel Tube
Alloy Steel Material Alloy Steel Material
Copper & Copper Alloy Tube Copper & Copper Alloy Tube
Monometallic Fin Tube Low Fin Tube Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. -- 9.52~40 12, 16, 19 28 FPI, etc.
Turbo-C Tube
Turbo-E Tube
Corrugated Tube All Kind of Material -- 6.35~40 2~9FPI



Company Information


HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
