|Place of Origin:||China|
|Brand Name:||HD Boiler|
|Model Number:||Superheater and Reheater|
|Minimum Order Quantity:||1Set|
|Packaging Details:||Seaworthy Packing|
|Delivery Time:||30 Days|
|Payment Terms:||L/C, T/T, Western Union, D/P, MoneyGram|
|Supply Ability:||500 Tons/Month|
|Fuel:||Coal/Gas/Coal-fired/Water Heat||Type:||Energy Saving|
|Pressure:||Low/High Pressure||Range Of Applications:||Industrial|
|Surface Treatment:||Painted||Hs Code:||3215960855|
superheater in boiler,
reheater in power plant

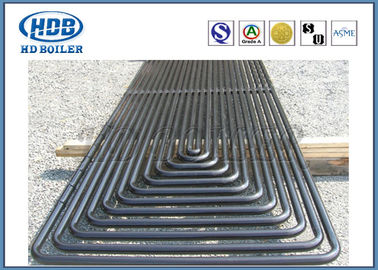

Hight efficiency SA213T11 alloy steel Superheater for Power plant CFB Boiler with ASTM certification
A super-heater is a device used to convert saturated steam or wet steam into superheated steam or dry steam. It is used in power stations. Super-heaters are used in steam engines or in processes, such as steam reforming. There are three types of super-heaters: radiant, convection, and separately fired. A super-heater can vary in size from a few tens of feet to several hundred feet (a few meters to some hundred meters).
Re-heaters are the same as the super-heaters but as their exit temperature is a little bit less than super-heaters and their pressure is 20%-25% less than the super-heater, they can stand less quality material alloys.
• Superheating raises overall efficiency as well as avoids too much condensation in last stages of turbine which avoids blade erosion.
• The heat of combustion gases from furnace is utilised for removal of moisture from steam and to superheat the steam.
• Super-heaters ususlly have several tube circuits in parallel with one or more return bends,connected between headers.
• Heat from the hot gases to the vapour in the surperheater is transferred at high temperatures.
• Therefore promary section of superheater is arranged in counterflow and secondary section in parallel flow to reduce the temp.stressing of the tube wall.
|Pendant-type||1.Firm structural support||1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom.||supported from above|
|Inverted-type||1.Proper drainage of the condensed steam||1. Lack the structural rigidity, especially in high speed gas flow||Supported from below|
1. Proper drainage
2. Good structural rigidity.
|1. They do not view the flam directly so they are mainly from the convective type||Usually supported in the vertical gas ducts parallel to the main furnace.
Manufacturing and acceptance criteria
JB/T1611 " Technical specification for manufacturing of boiler pipes."
JB/T1612 "boiler pressure test technical conditions. "
JB/T1613 "Technical specification for welding of pressure parts of boiler."
JB/T1615"Technical specification for painting and packing of boiler."
JB/T3375 "Rules for receiving acceptance of materials for boiler construction."
Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
1. Fabrication area of 200,000 square meters
2. 150 Engineers
3. 600 Coded welders
4. 60 Licensed Inspectors(NDT Level-III instructors)
5. Class-A Licenses for Design and Manufacture Boiler
6. ISO 9001:2008 Quality System
7. ASME Certificate of Power Boilers
8. ASME 'S','U' and NB stamp authorization
