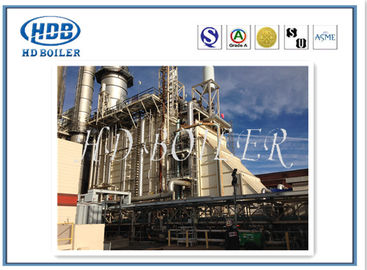

Excellenct Examined Hrsg Boiler , Waste Heat Boiler With Long Service Life

Excellenct Examined Hrsg Boiler , Waste Heat Boiler With Long Service Life

    • Excellenct Examined Hrsg Boiler , Waste Heat Boiler With Long Service Life
    • Excellenct Examined Hrsg Boiler , Waste Heat Boiler With Long Service Life
    • Excellenct Examined Hrsg Boiler , Waste Heat Boiler With Long Service Life
    • Excellenct Examined Hrsg Boiler , Waste Heat Boiler With Long Service Life
  • Excellenct Examined Hrsg Boiler , Waste Heat Boiler With Long Service Life

    Product Details:

    Place of Origin: CHINA
    Brand Name: HDB
    Certification: SGS,EN,CE,ISO9001
    Model Number: HRSG Heat Recovery Steam Generator

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy packing
    Delivery Time: 30~50 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 tons per month
    Contact Now
    Detailed Product Description
    Usage: Industrial,Industry And Power Station Pressure: Low / Intermediate / High Pressure
    Condition: New Weight: Customized
    Product Name: HRSG Used For Power Station Packing: Seaworthy Packing Of HRSG Heat Recovery Steam Generator.



    Excellenct Examined Customized Heat Recovery Steam Generator for Power Plant

    ☞ Product Introduction

    •  HRSG, as its name implies, refers to a boiler in which water is heated to a certain temperature by utilizing the waste heat of exhaust gas, waste material or waste liquid in various industrial processes and the heat generated by combustion of combustible substances.
    • Oil-fired boilers, gas-fired boilers and coal-fired boilers with waste heat recovery from flue boxes and flue flues are also called waste heat boilers.
    • The waste heat boilers can produce hot water or steam for other sections through waste heat recovery.

    Working Principle

    Fuel, gas and coal are burned to produce high-temperature flue gas to release heat. High-temperature flue gas enters the furnace first, then enters the waste heat recovery device of the front smoke box, then enters the pyrotechnic tube, and finally enters the waste heat recovery device of the back smoke box flue channel. High-temperature flue gas becomes low-temperature flue gas and is discharged into the atmosphere through the chimney. As the waste heat boiler greatly improves the utilization rate of heat released by fuel combustion, it is very energy-saving.

    Characteristics

    The high-temperature flue gas released from coal combustion is conveyed to the entrance of the waste heat boiler through the flue, and then flows through the heater, evaporator and economizer. Finally, it is discharged into the atmosphere through the chimney. The temperature of flue gas is generally 150-180 C. The heat released from the temperature of flue gas drops from high temperature to the temperature of flue gas is used to make water steam. The boiler feed water first enters the economizer, and the water absorbs heat in the economizer and warms up to a saturated temperature slightly below the drum pressure and enters the drum. After the water entering the drum is mixed with the saturated water in the drum, it enters the evaporator along the downcomer below the drum to absorb heat and start to produce steam. Usually only part of the water becomes vapor, so the vapor-water mixture flows in the evaporator. The vapor-water mixture leaves the evaporator and enters the upper drum through the vapor-water separation equipment. The water falls into the water space of the drum and enters the descending tube to absorb heat and produce steam. The vapor enters the superheater from the upper part of the drum and absorbs heat to change the saturated vapor into superheated vapor. According to the three stages of steam production process, there are three heating surfaces, namely economizer, evaporator and superheater. If superheated steam is not needed, only saturated steam is needed, superheater can not be installed. When there is reheating steam, a reheater can be added.

    Parameters

    Cement production line capacity t/d 1000 2500 5000 10000
    Boiler inlet flow Nm3/h Kiln(front) 60000 88000 243000 472000
    Kiln(tail) 76000 170000 328000 612000
    Boiler inlet gas temperature℃ Kiln(front) 370 360 380 390
    Kiln(tail) 360 320~360 330 330
    Rated evaporation t/h Kiln(front) 5.8 7.25 24 50
    Kiln(tail) 7.5 10~15.8 20~24.6 35.5
    Rated steam pressure Mpa Kiln(front) 1.25 1.25 1.25 1.25
    Kiln(tail) 1.25 1.25 1.25 1.25
    Rated steam temperature℃ Kiln(front) 340 330 350 360
    Kiln(tail) 340 300~340 310 310
    Boiler structure Kiln(front) Vertical Vertical Vertical Vertical
    Kiln(tail) Vertical Vertical and Horizontal Vertical and Horizontal Vertica

    Classification

    • Oil-fired HRSG
    • Gas-fired HRSG
    • Coal-fired HRSG

    Excellenct Examined Hrsg Boiler , Waste Heat Boiler With Long Service Life

    Company Information

    • 1100 employees, 400,000 ㎡ with fixed assets amounting to USD 110,000,000, 34 years experience, ISO9001, SO3834, EN12952 certificated, 150km expressway to Shanghai,60km state road to Suzhou or Wuxi, this is how we keep superior quality and competitive offers for global valued customers.
    • Our main products cover Utility Boiler, HRSG Boiler, coal-fired , oil(gas) -fired, coal-water-slurry-fired and garbage-fired steam/hot water boilers, organic heat carrier boilers, etc., and Boiler spare parts (Economizer, Finned tube, Header, Steam drum, Superheater, Water wall panel, Air preheater, Cyclone separator, etc., which are widely used in power generation, heat supply, chemical engineering, textile, food, paper, road building, plastic, rubber and wood working industries.
