Vertical Gas Oil Fired Thermic Fluid Boiler High Efficiency Low Pollution Emission

Vertical Gas Oil Fired Thermic Fluid Boiler High Efficiency Low Pollution Emission

    • Vertical Gas Oil Fired Thermic Fluid Boiler High Efficiency Low Pollution Emission
    • Vertical Gas Oil Fired Thermic Fluid Boiler High Efficiency Low Pollution Emission
    • Vertical Gas Oil Fired Thermic Fluid Boiler High Efficiency Low Pollution Emission
    • Vertical Gas Oil Fired Thermic Fluid Boiler High Efficiency Low Pollution Emission
  • Vertical Gas Oil Fired Thermic Fluid Boiler High Efficiency Low Pollution Emission

    Product Details:

    Place of Origin: China
    Brand Name: HD BOILER
    Certification: ISO9001,ASME,Grade A,SGS,EN
    Model Number: YYW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Sets Per Year
    Contact Now
    Detailed Product Description
    Fuel: Gas , Oil Fired Pressure: Low Pressure
    Place Style: Vertical Media: Organic Heat Transfer Material
    Usage: Industrial Specification: Customized
    Surface Treatment: Painted Port: Shanghai

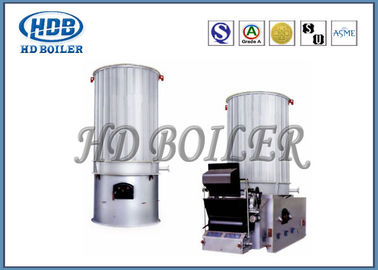

    Chain Grate Vertical Gas Oil fired Thermal Fluid Heater Low pollution emission



    Description



    Flame and high temperature smoke produced by complete burning of fuel (light diesel oil,heavy oil,residual oil,natural gas,liquefied petroleum gas,city gas etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.



    Technical Parameter



    Model

    YYL(W)

    350

    Y(Q)

    600

    Y(Q)

    900

    Y(Q)

    1200

    Y(Q)

    1500

    Y(Q)

    1800

    Y(Q)

    2300

    Y(Q)

    2900

    Y(Q)

    3500

    Y(Q)

    Rated power(kw) 350 600 900 1200 1500 1800 2300 2900 3500
    Heat supply×104(kCal/h) 30 50 75 100 160 150 200 250 300
    Thermal efficiency(%) ≥88 ≥88 ≥88 ≥88 ≥90 ≥90 ≥90 ≥90 ≥90
    Design pressure(MPa) 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
    Maximum working temperature(℃) 320 320 320 320 320 320 320 320 320
    Medium circulation rate(m3/h) 40 58 100 100 100 160 160 200 200
    The furnace medium capacity(m3) 0.4 0.6 0.6 0.8 1.2 2.1 2.6 3.5 7.8
    Competent diameter(DN) 100 100 125 125 125 150 150 200 200
    Capacity(kw) 14.5 18 31 37.5 49.5 57.5 61.5 75 75
    Applicable fuel Oil,Gas
    Fuel consumption Kg/h(oil) 34 56 84 111 141 163 217 273 326

    Dimensions

    (¢·H)m

    Vertical oil furnace 1.3×2.5 2×3.5 2.1×3.5 2.2×3.5 2.2×4 2.2×4.4 2.7×5.1 2.8×6.5 3.2×6.7

    Circulation

    pump

    Model WRY 80-50-180 100-65-190 100-65-230 100-65-240 100-65-257 125-80-250 125-80-250 125-100-250 125-100-250
    Flow(m3/h) 40 60 100 100 100 160 160 200 200
    Lift(m) 40 38 55 70 80 60 60 60 60
    Power(kw) 7.5 11 22 30 37 45 45 55 55



    Model

    YYL(W)

    4700

    Y(Q)

    5900

    Y(Q)

    7000

    Y(Q)

    8200

    Y(Q)

    9400

    Y(Q)

    10500

    Y(Q)

    12000

    Y(Q)

    14000

    Y(Q)

    16300

    Y(Q)

    Rated power(kw) 4700 5900 7000 8200 9400 10500 12000 14000 16300
    Heat supply×104(kCal/h) 400 500 600 700 800 900 1000 1200 1400
    Thermal efficiency(%) ≥90 ≥90 ≥90 ≥90 ≥90 ≥90 ≥90 ≥90 ≥90
    Design pressure(MPa) 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
    Maximum working temperature(℃) 320 320 320 320 320 320 320 320 320
    Medium circulation rate(m3/h) 260 300 340 400 520 600 600 680 800
    The furnace medium capacity(m3) 8.4 8.8 10.5 11.2 11.5 13 15 18 23
    Competent diameter(DN) 200 250 250 250 300 300 300 350 350
    Capacity(kw) 98.5 121.5 148.5 155 195 235 235 295 341
    Applicable fuel Oil,Gas
    Fuel consumption Kg/h(oil) 435 545 660 760 875 980 1140 1360 1600

    Dimensions

    (¢·H)m

    Vertical oil furnace 3.2×7 3.3×7.5 3.5×8.2 3.62×9.2 3.7×9.6 3.65×11 3.65×11

    3.98×

    11.8

    4.06×

    12.8

    Circulation

    pump

    Model WRY 125-100-257

    125-

    100-260

    150-125-270 125-100-250 125-100-257 125-100-260 150-100-260 150-125-270A 150-125-280
    Flow(m3/h) 260 300 340 200×2 260×2 300×2 300×2 340×2 400×2
    Lift(m) 70 70 76 60 70 70 70 76 78
    Power(kw) 75 90 110 55×2 75×2 90×2 90×2 110×2 132×2





    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



    1. Fabrication area of 200,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization



    Vertical Gas Oil Fired Thermic Fluid Boiler High Efficiency Low Pollution Emission





    Contact Details
